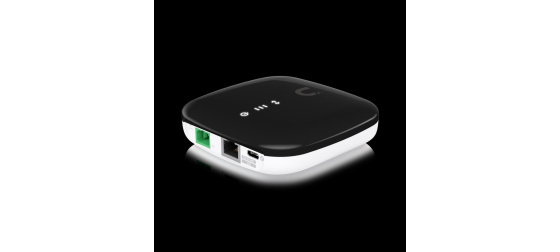

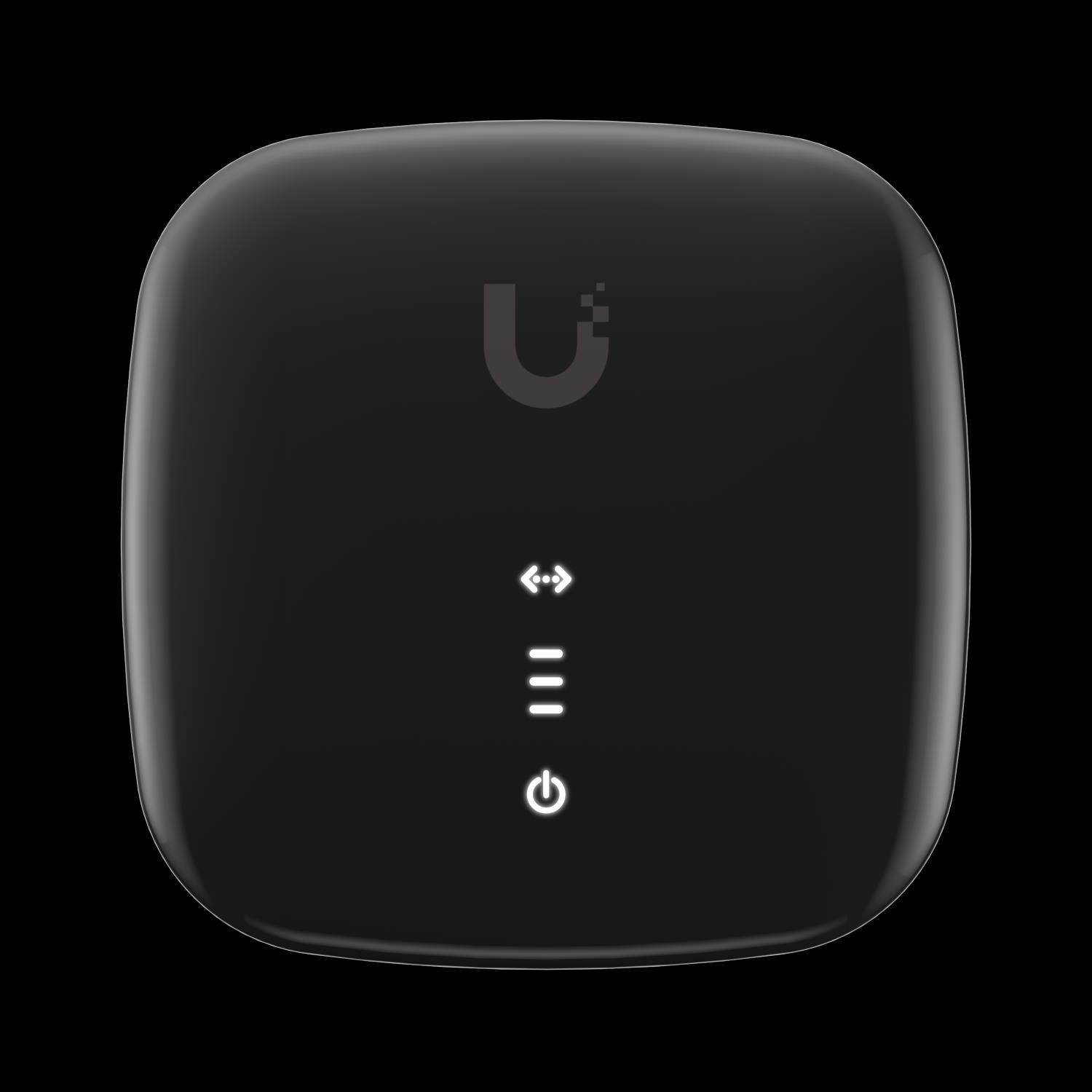

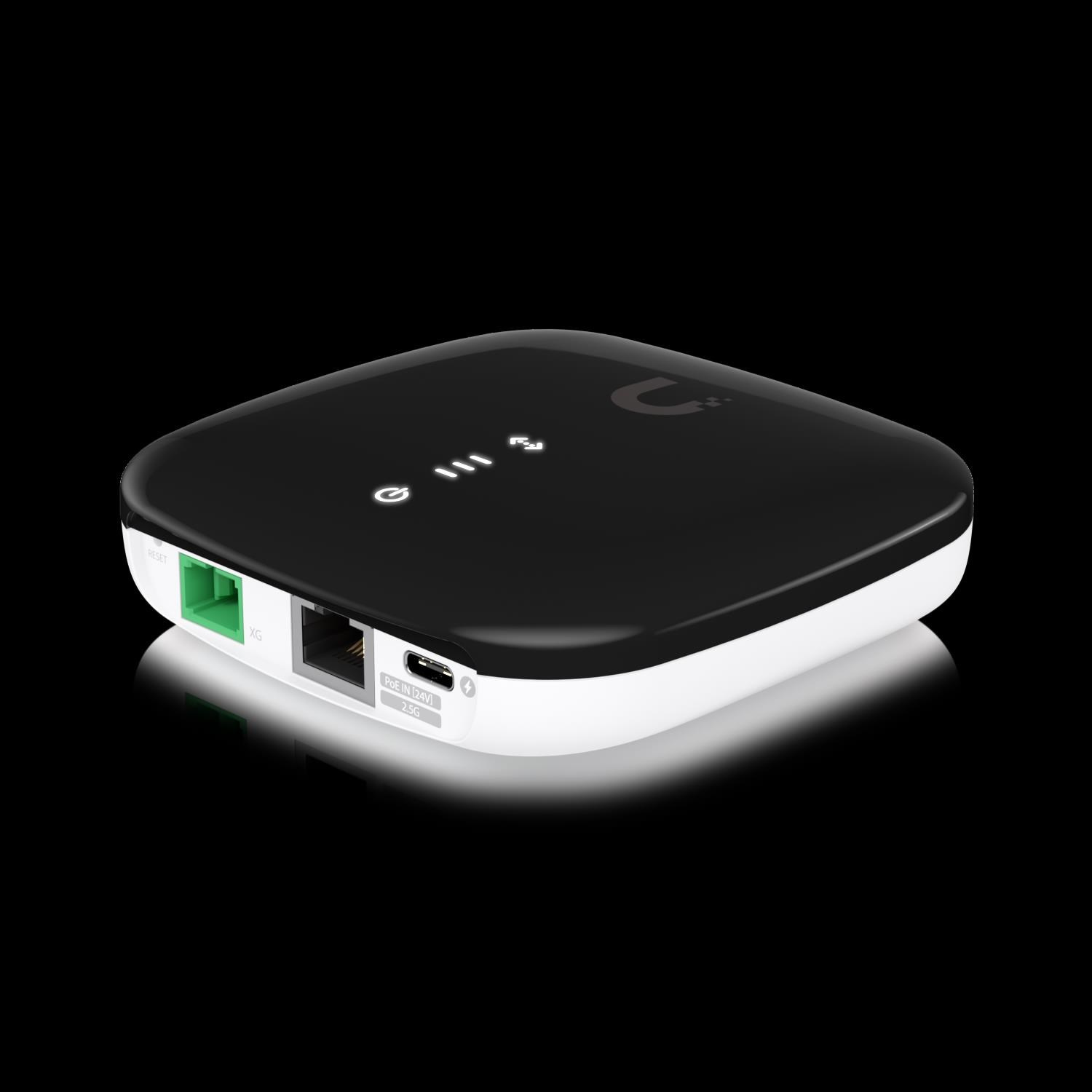

UBNT UISP-FIBER-XG, UISP Fiber XG-PON CPE

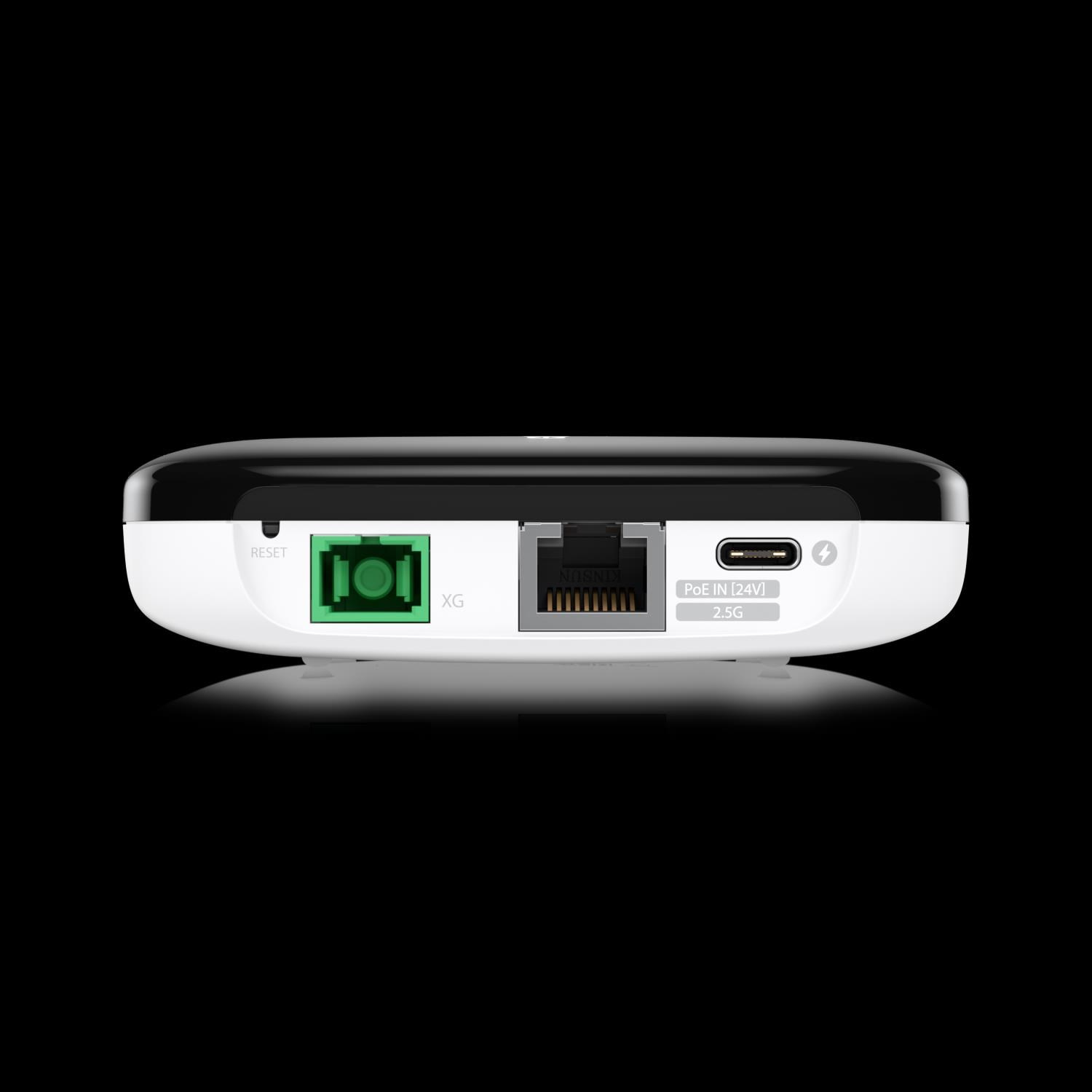

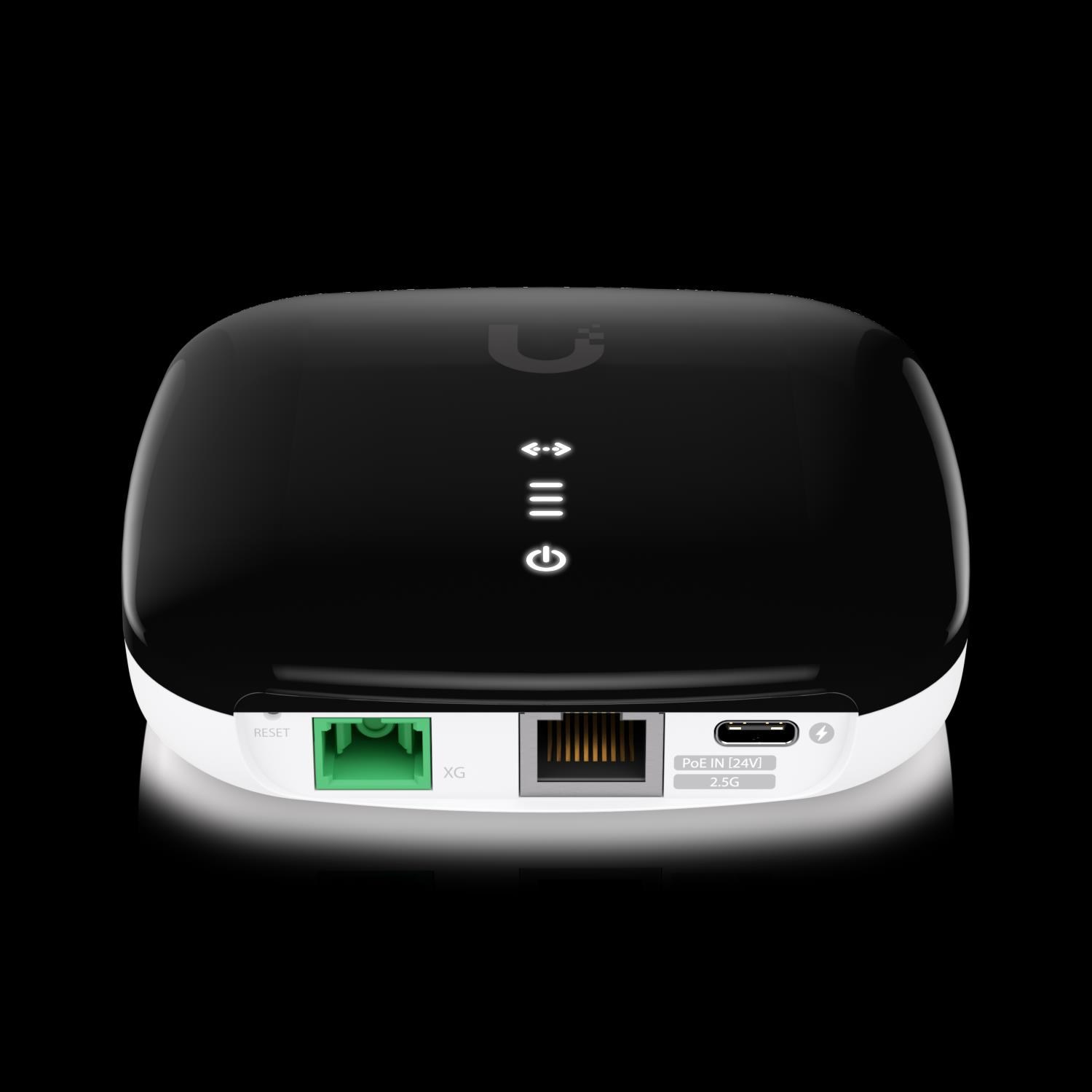

Description & Key Features UISP Fiber XG-PON CPE Features: (1) XG-PON optic SC/APC port (1) 2.5GbE RJ45 LAN port that supports 24V passive PoE Bridge and Router Mode support Note: This device is only compatible with the UISP Fiber XGS OLT. It cannot be used with third-party OLTs. Managed with the UISP application: Version 1.5.7 and later Technical Specifications Mechanical Dimensions 100 x 100 x 27 mm (3.9 x 3.9 x 1.1") Weight 220 g (0.49 lb) Enclosure material UV-stabilized polycarbonate Hardware Networking interface (1) SC/APC, ITU-G.987 XGPON WAN port (1) 100/1,000/2,500 MbE RJ45 LAN ports Management interface Ethernet in-band PON PoE interface (1) PoE in, 24V DC passive PoE Memory 256 MB DDR Onboard flash storage 32 MB NOR Max. power consumption 6W Power method USB-C 5V DC, 3A 24V DC passive PoE Power supply 5V DC, 3A power adapter Passive PoE 2-pair (4, 5+; 7, 8-) Supported voltage range 5V DC adapter 10–30V DC passive PoE Total non-blocking line rate Downstream: 9.95 Gbit/s Upstream: 2.44 Gbit/s Normal TX range of optical module 2 to 7dBm Normal RX range of optical module -9 to -27dBm Button (1) Factory reset Operating temperature -15 to 45° C (5 to 113° F) Operating humidity 10 to 95% non-condensing Certifications CE, FCC, IC Fiber Operating wavelength TX: 1,270nm RX: 1,577nm Line code Scrambled NRZ Physical reach 20 km LEDs Power White: ON Ethernet Steady white: link up Blinking white: activity OFF: link down PON status (3) signal LEDs All-OFF: bootup 1x orange: signal too low (< -27 dbm) 1x white: signal low (>= -27 dbm) 2x white: signal good (>= -24 dbm) 3x white: signal strong (>= -12 dbm) 1x orange + 2x white: signal too strong (>= -9 dbm) 3x orange: no signal LEDs alternate between orange + white + orange and a signal strength indicator: no authority.
