Zdarma

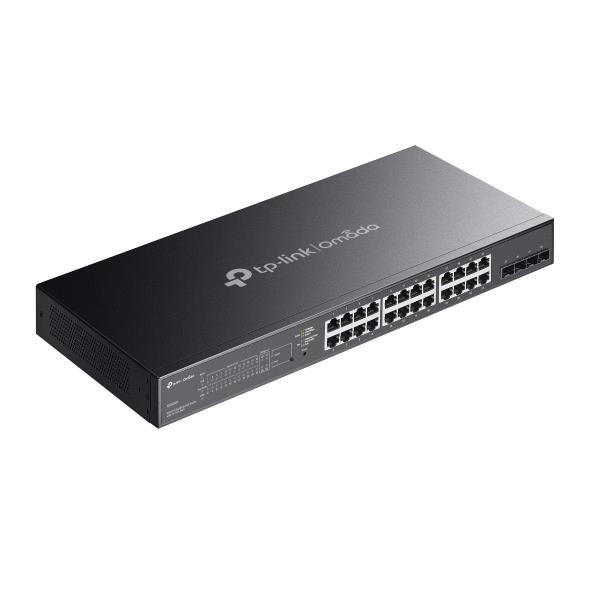

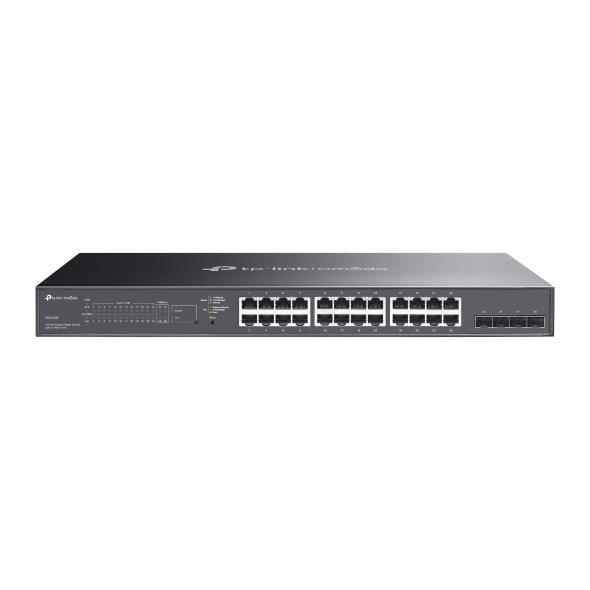

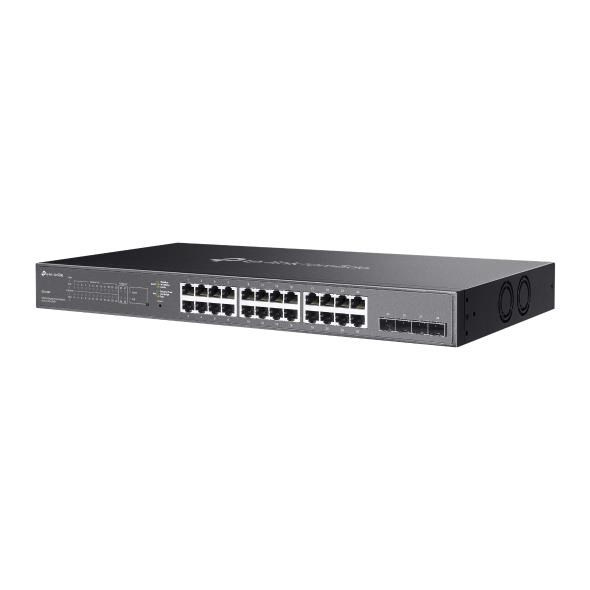

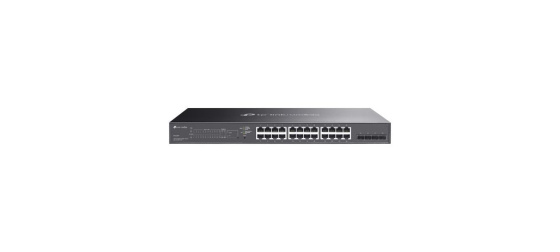

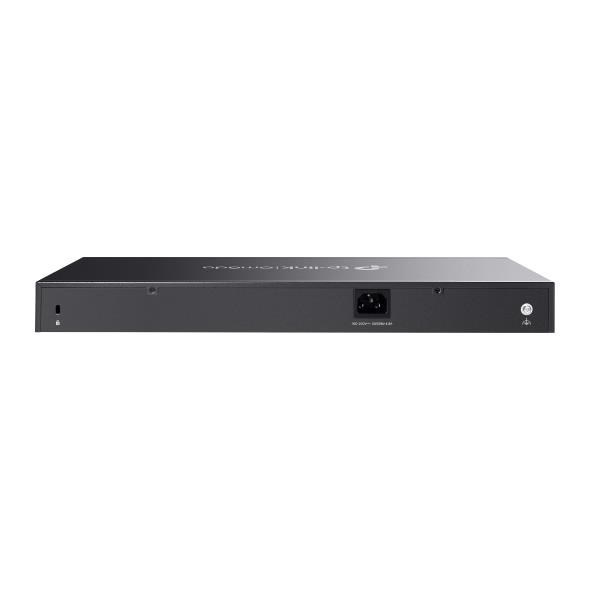

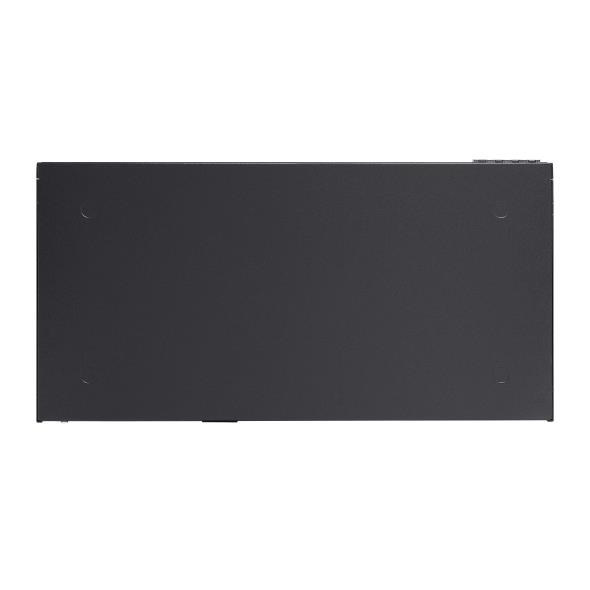

TP-Link OMADA switch SG2428P (24xGbE, 4xSFP, 24x PoE+, 250W)
Kód: 324112Skladem7ks
Termín a způsob doručení
Provedení:Rack mounted 19"; Funkce:QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), DHCP snooping, L2, Web management/Smart switch; Technologie:Gigabit ethernet + Gigabit optika; Počet portů LAN:24; Počet portů LAN:24; Podporované standardy PoE:802.3af, 802.3at; PoE budget (W):250; Počet SFP portů:4; Počet SFP portů:4.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
324112
EAN:
6935364030650
Záruka:
60 Měsíc(ů)
Maximální počet portů:
28
Provedení:
Rack mounted 19"
Technologie:
Gigabit ethernet + Gigabit optika
Management:
SNMP/RMON, Web
Počet portů LAN:
24
Ventilátor:
Ano
Přenosová rychlost LAN (Mb/s):
1000
Funkce:
QoS (Quality of service), VLAN (virtual local area network), L2, DHCP snooping, Web management/Smart switch, PoE (Power over ethernet)
Vlastnosti switche:
Funkce POE po portech
Podporované standardy PoE:
802.3af, 802.3at
Počet SFP portů:
4
PoE budget (W):
250
Počet PoE+ portů:
24
Počet portů LAN:
24
Maximální počet portů:
28
Počet SFP portů:
4
PoE budget (W):
250
Počet PoE+ portů:
24
Popis TP-Link OMADA switch SG2428P (24xGbE, 4xSFP, 24x PoE+, 250W)
TP-Link OMADA switch SG2428P
28portový gigabitový inteligentní switch s 24 porty PoE+
- PoE s rozpočtem napájení 250 W - 24 portů PoE+ vyhovujících standardu 802.3at/af s celkovým napájecím výkonem 250 W.
- Plně gigabitové porty - 24 gigabitových portů PoE+ a 4 sloty SFP poskytují vysokorychlostní připojení.
- Integrováno do platformy Omada SDN - Funkce ZTP (Zero-Touch Provisioning), centralizovaná cloudová správa a inteligentní monitorování
- Centralizovaná správa - Cloudový přístup a aplikace Omada pro maximální pohodlí a snadnou správu.
- Statické směrování - Pomáhá směrovat tok dat po lokální síti, čímž zajišťuje efektivní využívání síťových prostředků.
- Robustní strategie zabezpečení - Funkce vázání na adresu IP-MAC, ACL, zabezpečení portů, ochrana proti útokům DoS, funkce Storm Control, funkce DHCP Snooping, ověřování protokolem 802.1X a Radius a další funkce.
- Optimalizovaný přenos hlasu a videa v aplikacích - L2/L3/L4 QoS a funkce IGMP Snooping.
- IPv6 - Podpora protokolu IPv6 s duálním zásobníkem IPv4/IPv6, MLD Snooping, IPv6 Neighbor Discovery.
Zjistit více o technologii TP-Link PoE >
Zjistit více o Omada Cloud SDN>?
Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-sdn-switch/tl-sg2428p/
Technické specifikace
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
| Interface | • 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 4× Gigabit SFP Slots |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) • 1000BASE-X: MMF, SMF |
| Fan Quantity | 2 |
| Power Supply | 100-240V AC, 50/60Hz |
| PoE+ Ports(RJ45) | • Standard: 802.3at/af compliant • PoE+ Ports: 24 Ports • Power Supply: 250 W |
| PoE Ports (RJ45) | • Standard: 802.3at/af compliant • PoE+ Ports: 24 Ports • PoE Power Budget: 250 W* |
| Dimensions ( W x D x H ) | 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | • 32.1 W (110 V/ 60 Hz with no PD connected) • 308.6 W (110 V/ 60 Hz with 250 W PD connected) |
| Max Heat Dissipation | • 109.53 BTU/h (with no PD connected) • 1052.94 BTU/h (with 250 W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 56 Gbps |
| Bandwidth/Backplane | 56 Gbps |
| Packet Forwarding Rate | 41.7 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port/Flow based Rating Limit • Smoother Performance • Storm Control - Multiple Control Modes(kbps/ratio) - Broadcast/Multicast/Unknown-Unicast Control |
| L2 and L2+ Features | • 16 IP Interfaces - Support IPv4/IPv6 Interface • Static Routing - 32 IPv4/IPv6 Static Routes • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 Relay • Static ARP • Proxy ARP • Gratuitous ARP • Link Aggregation - Static link aggregation - 802.3ad LACP - Up to 8 aggregation groups and up to 8 ports per group • Spanning Tree Protocol - 802.1D STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter/Protect, Root Protect • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Flow-Based - Ingress/Egress/Both • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MED |
| VLAN | • VLAN Group - Max. 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN • Protocol VLAN • GVRP • Voice VLAN |
| Access Control List | • Support up to 230 entries • Time-Range - Time Slice - Week Time-Range - Absolute Time-Range - Holiday • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL - Source IP - Destination IP - IP Protocol - TCP Flag - TCP/UDP Source Port - TCP/UDP Destination Port - DSCP/IP TOS • IPv6 ACL • Combined ACL • Rule Operation - Permit/Deny • Policy Action - Mirror - Rate Limit - Redirect - QoS Remark • ACL Rules Binding - Port Binding - VLAN Binding • Actions for flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark |
| Security | • AAA • 802.1X - Port based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability • IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection • IP Source Guard - 253 Entries - Source IP+Source MAC • IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC • DoS Defend • Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC based access control |
| IPv6 | • IPv6 Static Routing and ACL • IPv6 Dual IPv4/IPv6 • IPv6 Interface • Multicast Listener Discovery (MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet(v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP |
| Advanced Features | • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule |
| MIBs | • MIB II (RFC1213) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIBs • RMON MIB(RFC1757, rmon 1,2,3,9) |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2428P v1, v3 and above, while is not supported by TL-SG2428P v2) |
| Management Features | • Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • SNTP • System Log |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SG2428P • Power Cord • Installation Guide • Rackmount Kit • Rubber Feet |
| System Requirements | Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, Windows 10, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: 0–50 °C (32–122 °C) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
.
