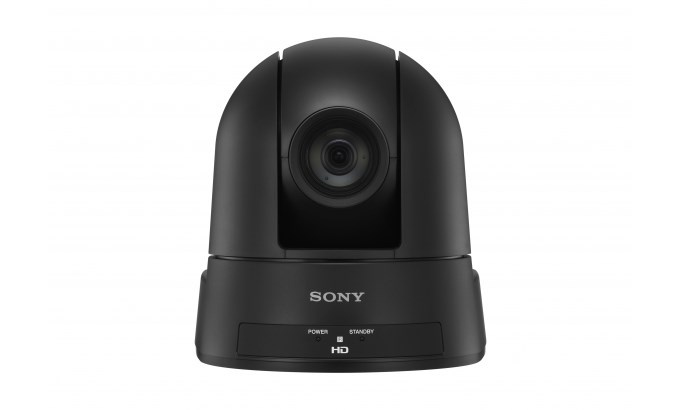

SONY PTZ kamera, 30x Optical and 12x Digital zoom, 1080/60, Exmor, HDMI, LAN/RS232/RS422, View-DR, XDNR

Image Sensor

1/2.8 Exmor CMOS

Image Sensor (Number of Effective Pixels)

Approx. 2.1 Megapixels

Signal System

1080/59.94p,50p,29.97p,25p
1080/59.94i,50i
720/59.94p,50p,29.97p,25p

Minimum Illumination (50IRE)

1.4 lx (50IRE, F1.6, 30fps)

S/N Ratio

50 dB

Gain

Auto/Manual (0 to +43 dB)

Shutter Speed

1/1 to 1/10000 sec(59.94 Hz system)
1/1 to 1/10000 sec(50Hz system)

Exposure Control

Auto, Manual, Priority AE(Shutter,Iris), Exposure compensation, Blight

White Balance

Auto, Indoor, Outdoor, One-push auto, ATW,Manual

Optifal Zoom

30x

Digital Zoom

12x

Focusing System

Auto/Manual

Horizontal Viewing Angle

65 degree(Wide)

Focal Length

f=4.3mm(wide) to 129 mm(Tele)
F1.6 to 4.7

Minimum Object Distance

10 mm(Wide)~
1200 mm(Tele)

Pan/Tilt Angle

Pan: ±170° Tilt: +90°/-20°

Pan/Tilt Speed (Max.)

Pan 100°/sec Tilt 90°/sec

Preset Position

16

Auto ICR

Yes

Wide-D

Yes

Image Stabilization

Yes

Image Flip

Yes

Auto Power Off

No

Night Power Off

No

Hd Video Output

HDMI

Sd Video Output

-

Camera Control Interface

RS-232/RS-422/RJ-45

Sync. System

INT

Power Requirements

DC 12V (DC 10.8 to 13.2V)

Power Consumption

16.8W

Operating Temperature

0 °C to 40 °C 32 °F to 104 °F

Storage Temperature

-20 °C to +60 °C -4 °F to +140 °F

Dimensions (W x H x D) *1

157 x 164 x 163mm
6 1/4 × 6 1/2 × 6 1/2 inches

Mass

1.4kg
3 lb 1.4 oz

Body Color

White/Black

Wide Conversion Lens Attachable

No

Mountable Angle

±15°

Ceiling Mount

Yes

Supplied Accessories

AC power adaptor (1)
AC power cable (1)
IR Remote Commander Unit (1)
CD-ROM (Operating Instructions) (1)
Ceiling bracket (2)
RS-422 connector plug (1)
Wire rope(1)
Screw M3 x 8(8)

*1

The values for dimensions are approximate.
