MSI MB Sc LGA1700 PRO H610M-E DDR4, Intel H610, 2xDDR4, 1xHDMI, 1xVGA, mATX
Kód: 2648493Není skladem
Termín a způsob doručení
Formát základní desky:micro ATX; Chipset:Intel H610; Socket (patice):Socket 1700; Pro procesory:Intel; Technologie paměti RAM:DDR4; Počet paměťových slotů:2; M.2 slot:1; SATA 3:4; Podpora RAID:Bez RAID podpory; PCI Express x16:1; PCI Express x1:1; PCI:0; LAN:1Gbit/s; Bezdrátové připojení:bez; DisplayPort:0; HDMI:1; VGA:1; DVI:0; DisplayPort Type-C:0.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
2648493
EAN:
4711377002660
Záruka:
36 Měsíc(ů)
Technologie paměti RAM:
DDR4
Socket (patice):
Socket 1700
Formát základní desky:
micro ATX
Chipset:
Intel H610
PCI Express x16:
1
Podpora RAID:
Bez RAID podpory
COM port:
Ne
LPT port:
Ne
Pro procesory:
Intel
Počet paměťových slotů:
2
3.5mm Jack:
Ano
LAN:
1Gbit/s
DisplayPort:
0
Bezdrátové připojení:
bez
Led Header:
Ano
TPM:
Ano
PCI Express x1:
1
USB 2:
8
USB 3:
4
USB C:
0
PCI:
0
M.2 slot:
1
SATA 3:
4
VGA:
1
DVI:
0
HDMI:
1
DisplayPort Type-C:
0
Počet Thunderbolt:
0
Popis MSI MB Sc LGA1700 PRO H610M-E DDR4, Intel H610, 2xDDR4, 1xHDMI, 1xVGA, mATX

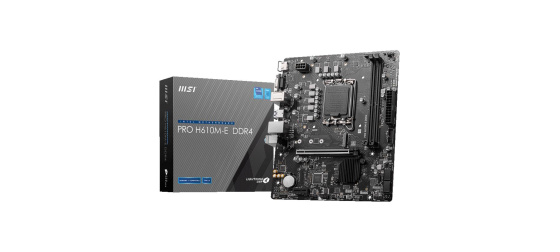

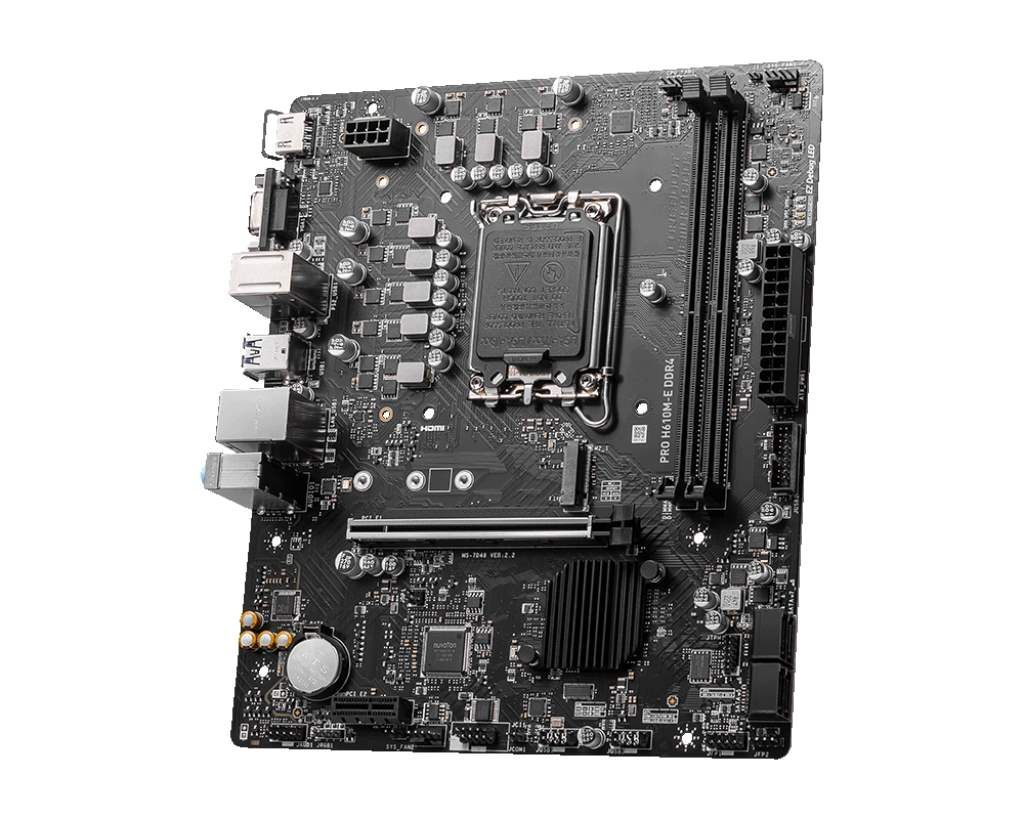

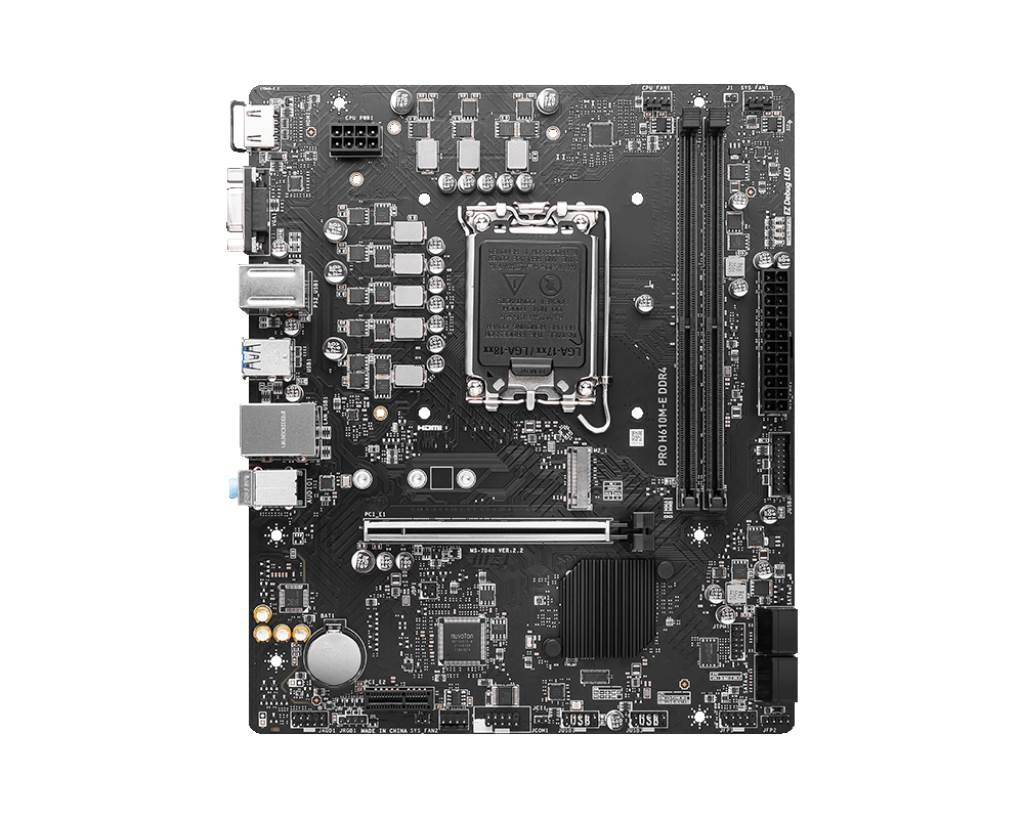

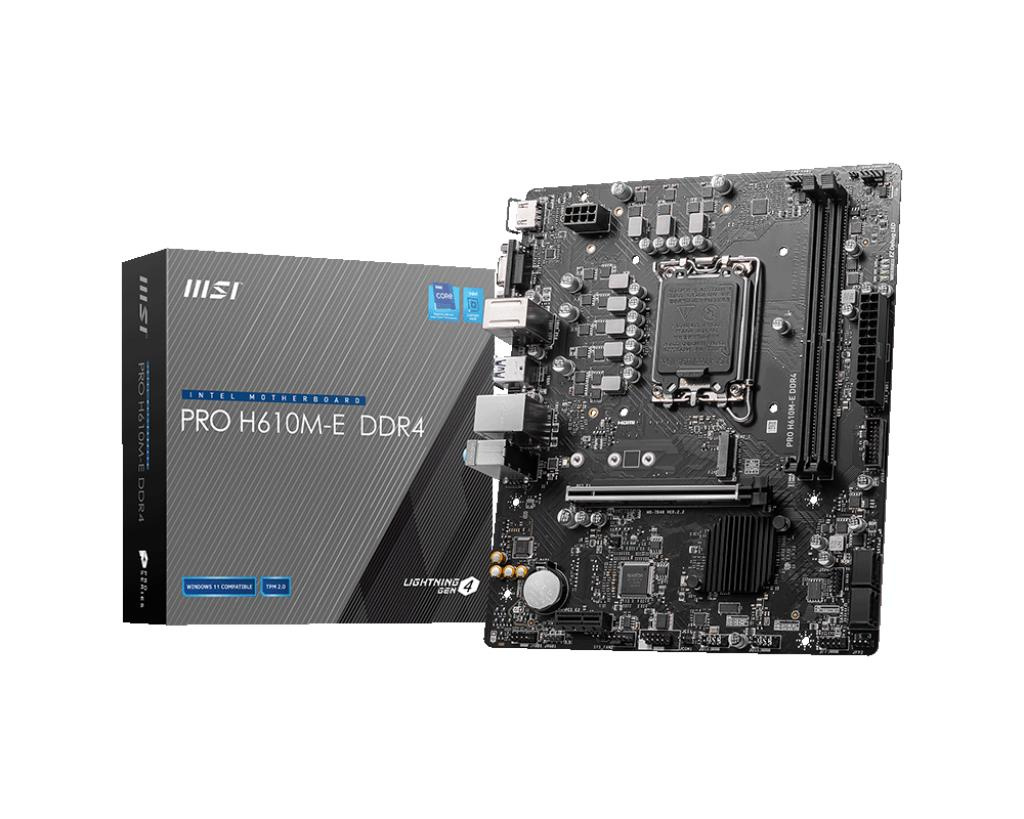

MSI PRO H610M-E DDR4
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
CPU
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors 1
Processor socket LGA1700
Please go to www.msi.com to get the newest support status as new processors are released.
CHIPSET
Intel® H610 Chipset
MEMORY
2x DDR4 memory slots, support up to 64GB 1
Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Please refer to www.msi.com for more information on compatible memory.
EXPANSION SLOT
1x PCIe x16 slot (From CPU)
Supports up to PCIe 4.0 x16
1x PCIe x1 slot (From H610 chipset)
Supports PCIe 3.0 x1
ONBOARD GRAPHICS
1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz 1 / 2
1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2
Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed.
STORAGE
4x SATA 6Gb/s ports (From H610 chipset)
1x M.2 slot (Key M) (from CPU)
Supports up to PCIe 3.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
INTERNAL USB CONNECTORS
1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)
Supports additional 2 USB 3.2 Gen 1 5Gbps ports
2x USB 2.0 Type-A connectors (From Hub-GL850G)
Supports additional 4 USB 2.0 ports
AUDIO
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
LAN
1x Realtek® RTL8111H 1Gbps LAN controller
INTERNAL CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin +12V power connector
1x 4-pin CPU fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Serial port connector
1x Clear CMOS jumper
1x 4-pin RGB LED connector
4x EZ Debug LED

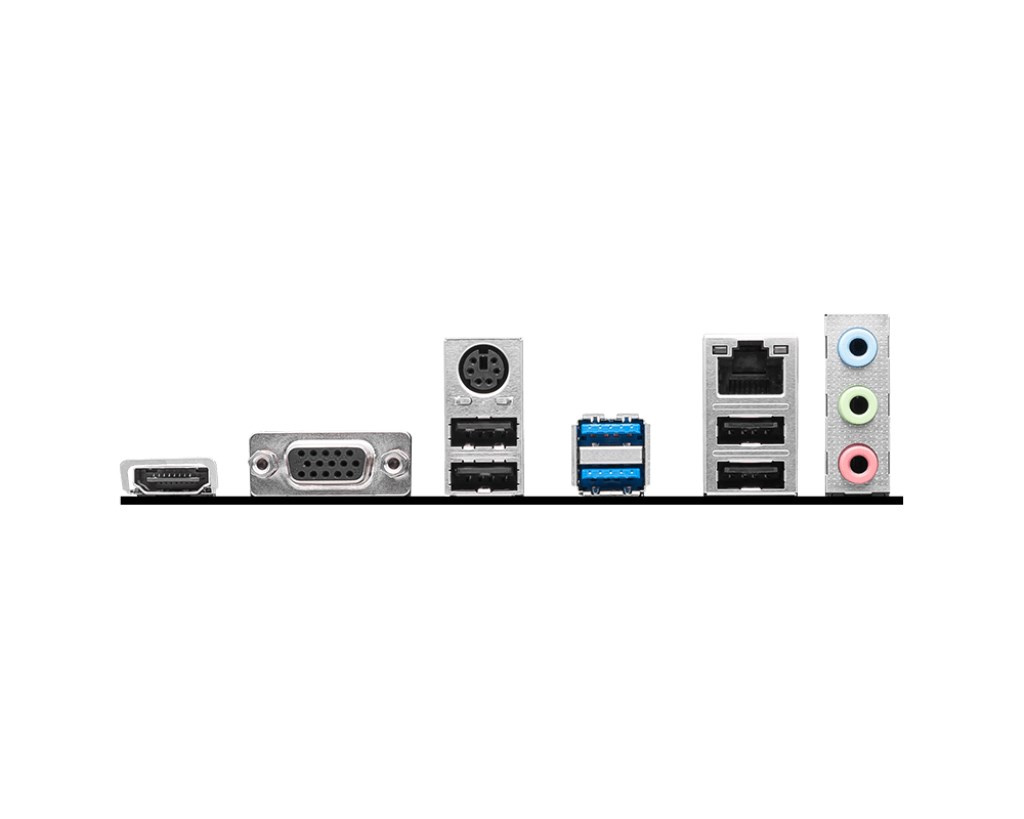

BACK PANEL PORTS
HDMI™
VGA
Keyboard / Mouse
USB 3.2 Gen 1 5Gbps Type-A
LAN port
Audio connector
USB 2.0
DIMENSIONS
M-ATX Form Factor
9.3 in. x 7.9 in. (23.6 cm x 20 cm)
