MSI MB Sc AM4 A520M-A PRO, AMD A520, 2xDDR4, m-ATX
Kód: 2647974Není skladem
Termín a způsob doručení
Formát základní desky:micro ATX; Chipset:AMD A520; Socket (patice):Socket AM4; Pro procesory:AMD; Technologie paměti RAM:DDR4; Počet paměťových slotů:2; M.2 slot:1; SATA 3:4; Podpora RAID:0, 1, 10; PCI Express x16:1; PCI Express x1:1; PCI:0; LAN:1Gbit/s; Bezdrátové připojení:bez; DisplayPort:0; HDMI:1; VGA:0; DVI:1; USB 2:6; USB 3:6; USB C:0; TPM.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
2647974
EAN:
4719072749927
Záruka:
36 Měsíc(ů)
Technologie paměti RAM:
DDR4
Socket (patice):
Socket AM4
Formát základní desky:
micro ATX
Chipset:
AMD A520
PCI Express x16:
1
Podpora RAID:
0, 1, 10
COM port:
Ne
LPT port:
Ne
Pro procesory:
AMD
Počet paměťových slotů:
2
3.5mm Jack:
Ano
LAN:
1Gbit/s
DisplayPort:
0
Bezdrátové připojení:
bez
Led Header:
Ne
TPM:
Ano
PCI Express x1:
1
USB 2:
6
USB 3:
6
USB C:
0
PCI:
0
M.2 slot:
1
SATA 3:
4
VGA:
0
DVI:
1
HDMI:
1

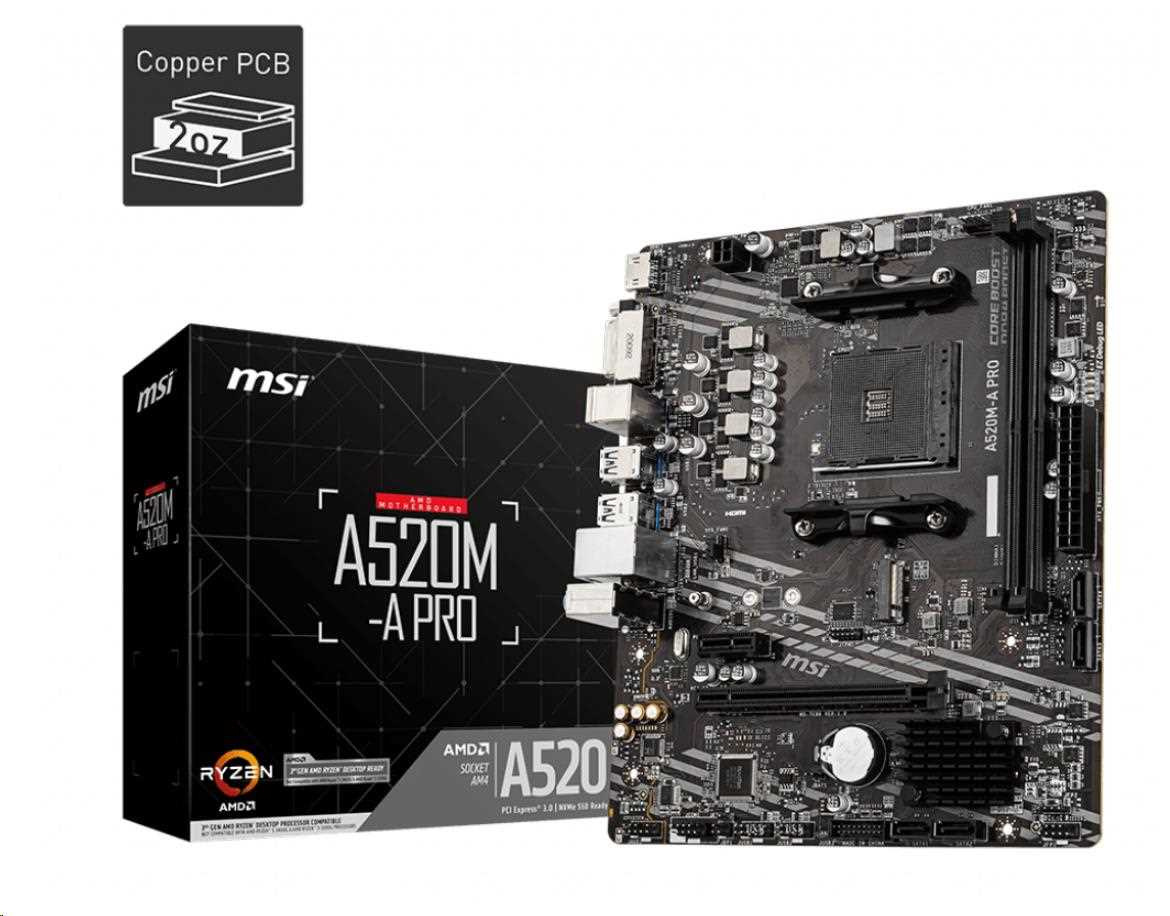

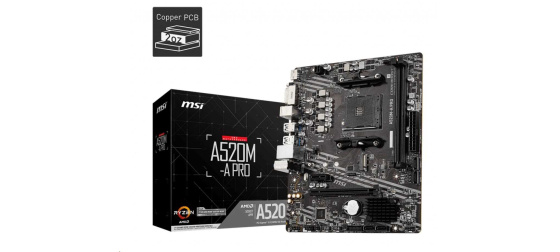

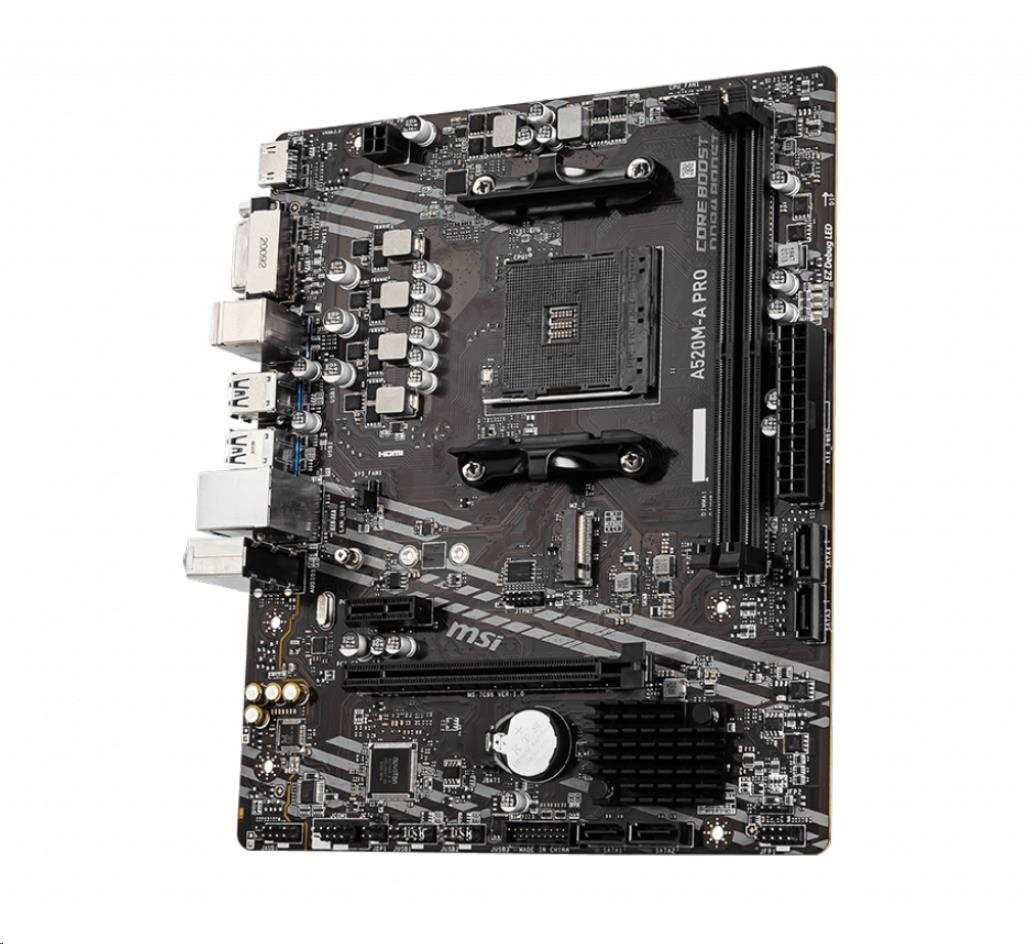

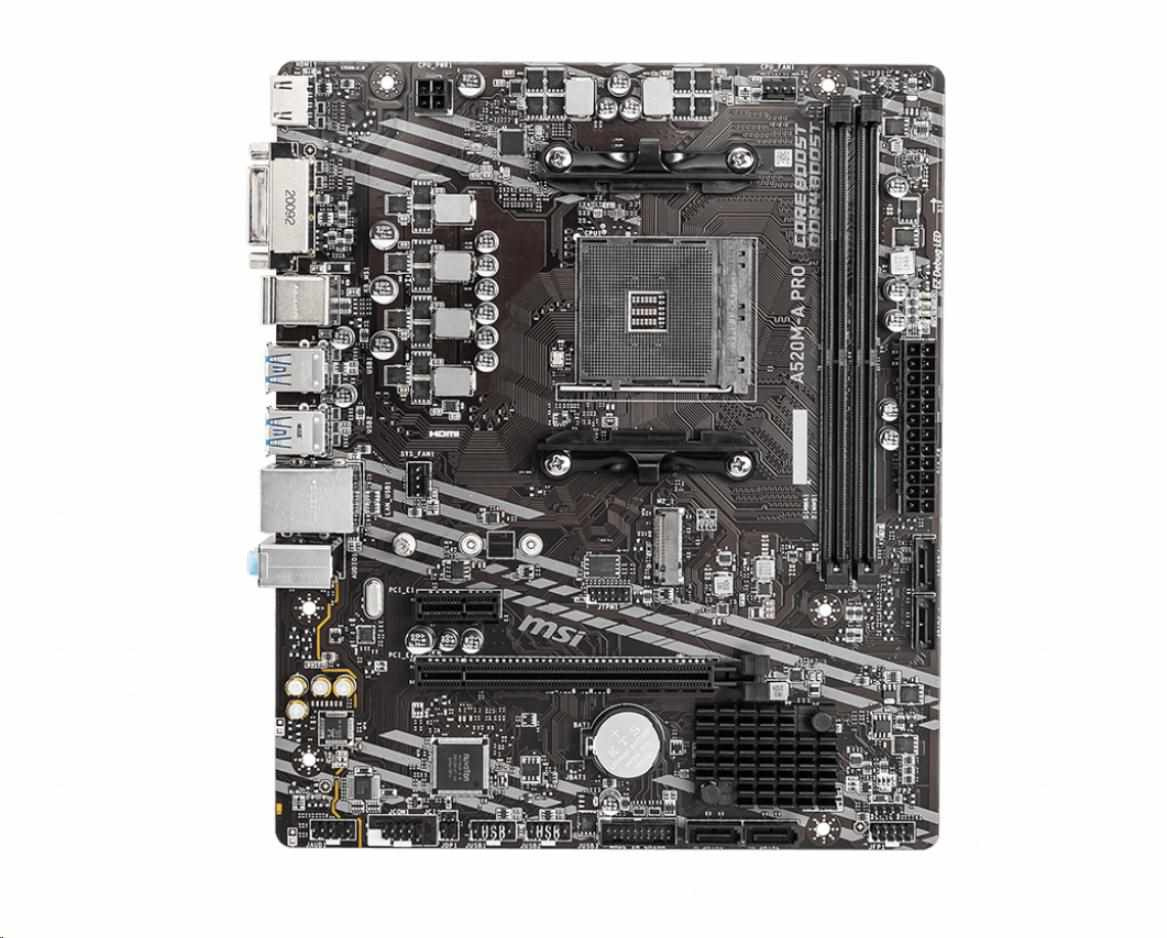

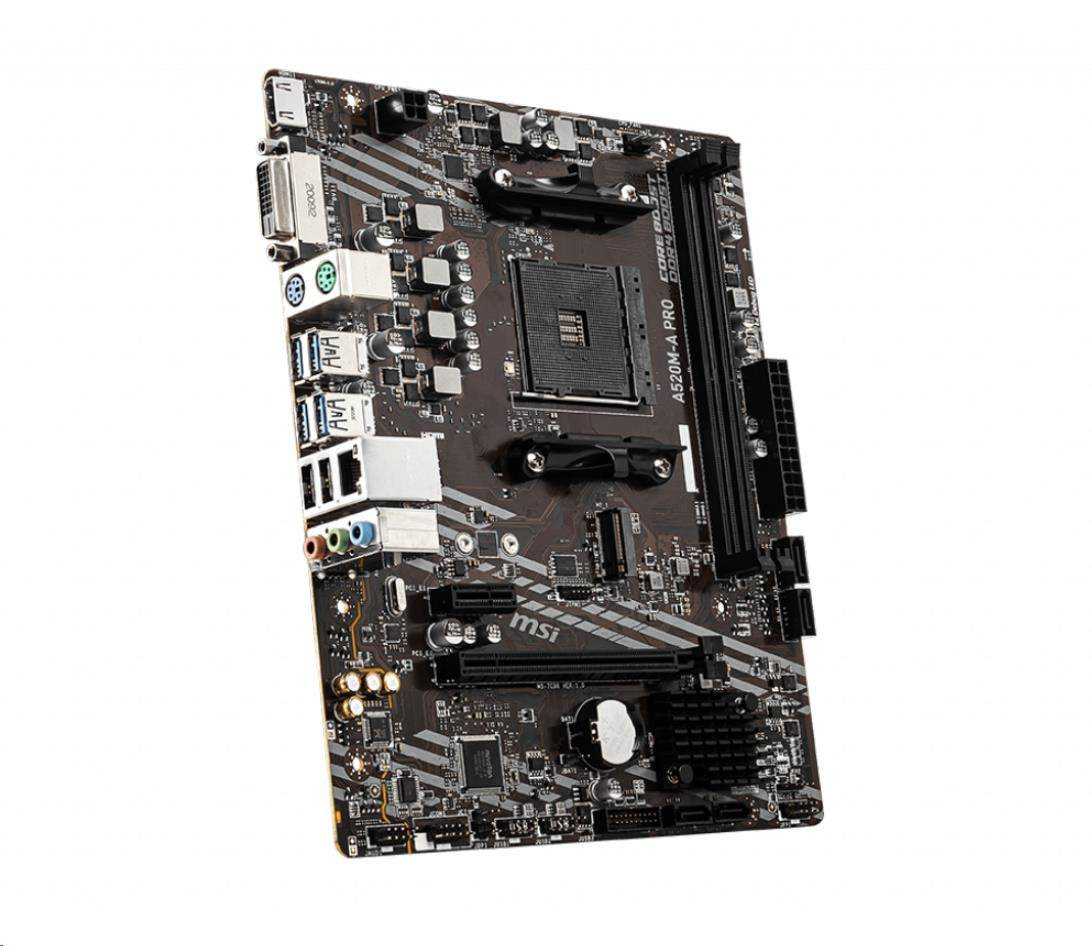

Popis MSI MB Sc AM4 A520M-A PRO, AMD A520, 2xDDR4, m-ATX
A520M-A PRO
- Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
- Supports DDR4 Memory, up to 4600(OC) MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Core Boost: With premium layout and digital power design to support more cores and provide better performance.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
- 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
- Audio Boost: Reward your ears with studio grade sound quality
- Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.
TECHNICAL SPECIFICATIONS
| Socket | AM4 |
| CPU Support | Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors |
| Chipset | AMD® A520 Chipset |
| Memory |
|
| Expansion Slot |
|
| Onboard Graphics |
|
| Storage | AMD A520 Chipset
|
| RAID |
|
| USB | AMD A520 Chipset
AMD Processor
|
| AUDIO | Realtek® ALC892 Codec
|
| LAN |
|
| Internal Connectors |
|

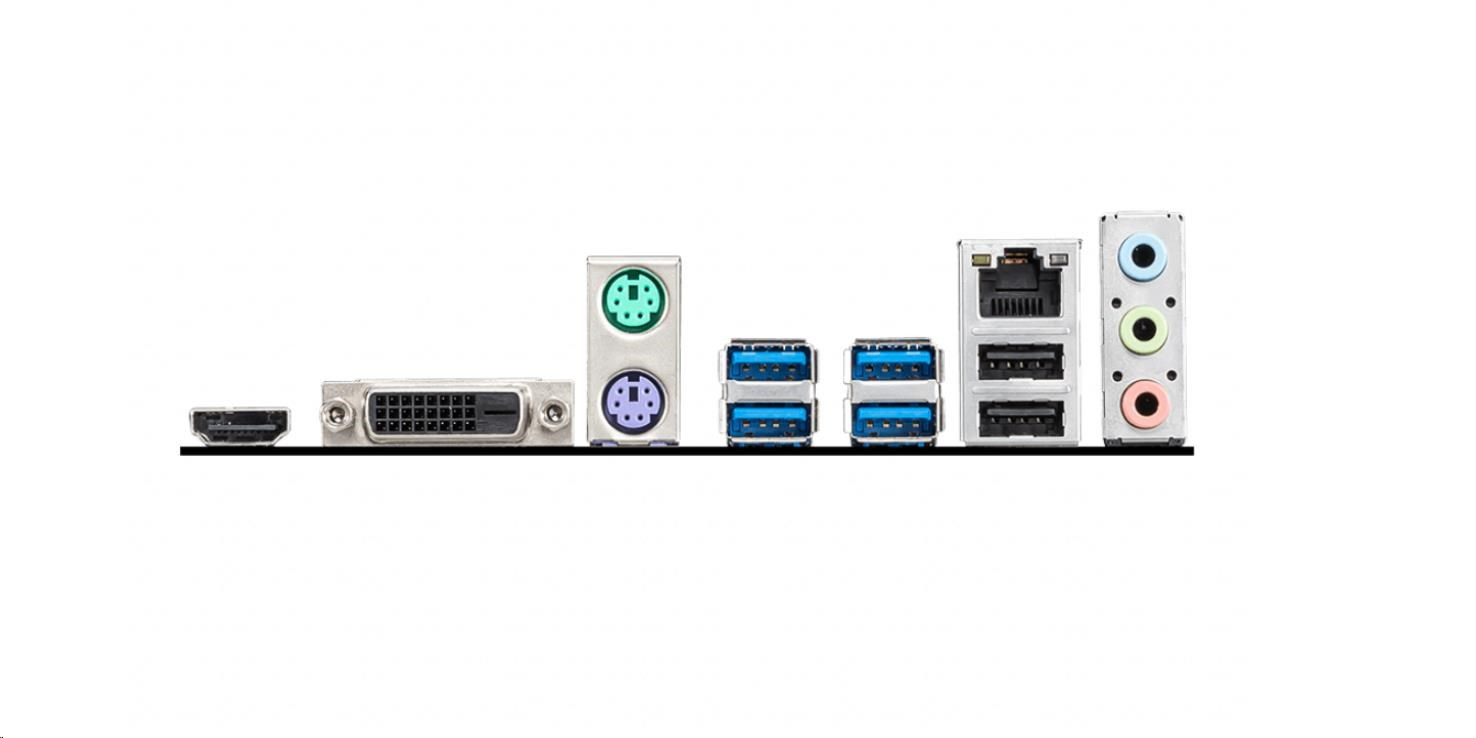

| Back Panel Ports |
|
| Dimensions |
|
| Mounting |
|
| Box Content |
|
| Form Factor | m-ATX |
| Operating System | Support for Windows® 10 64-bit |
.
