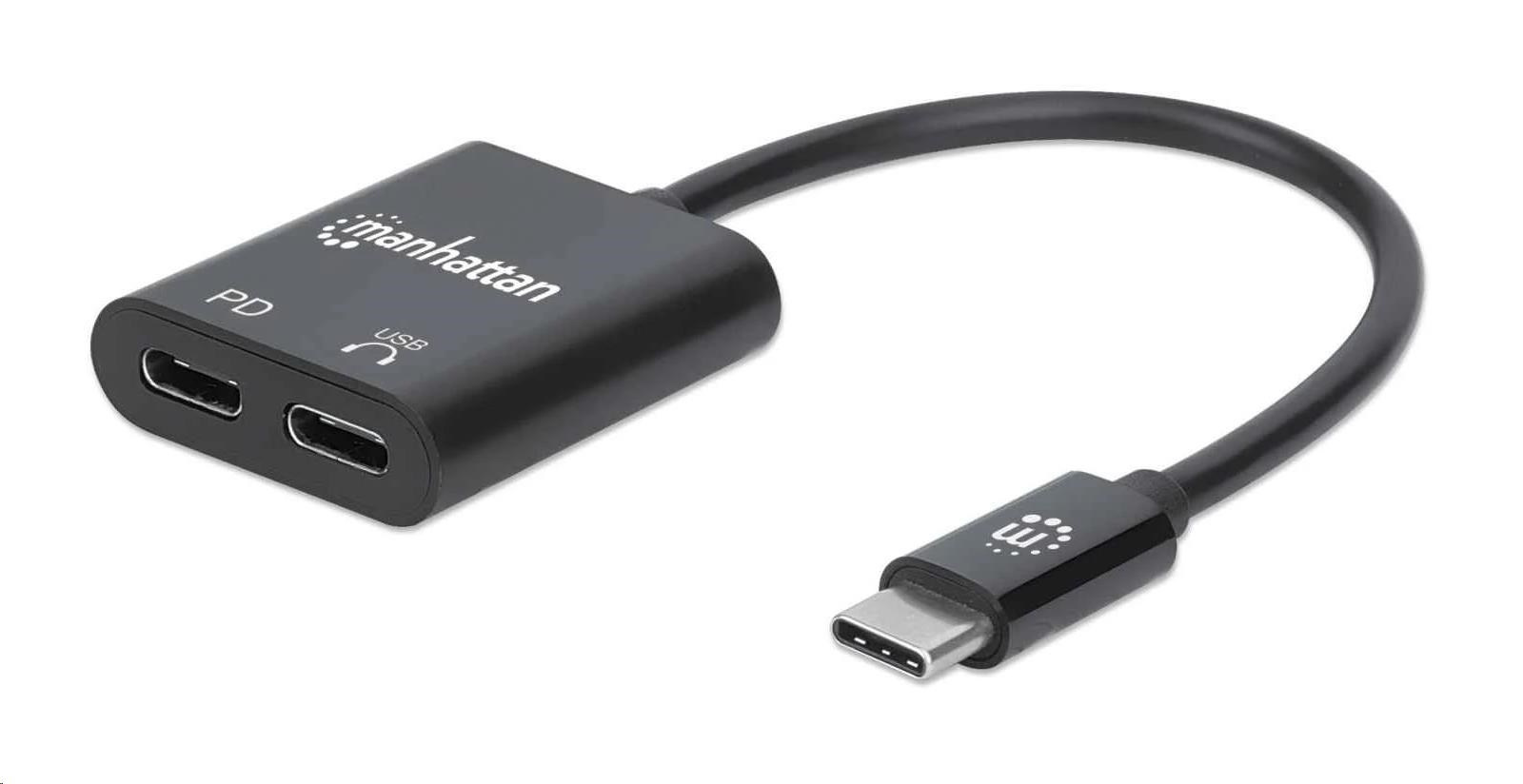

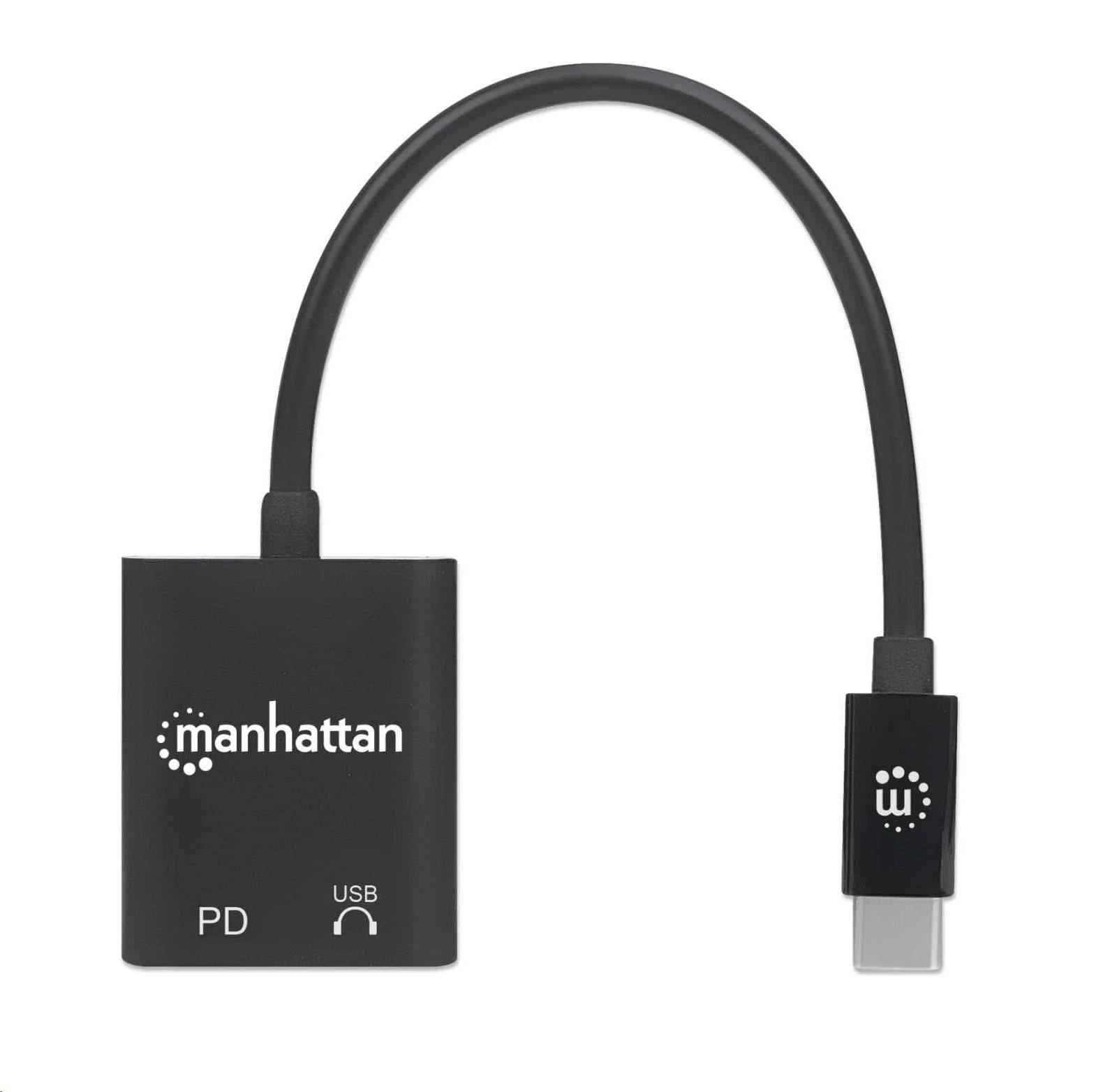

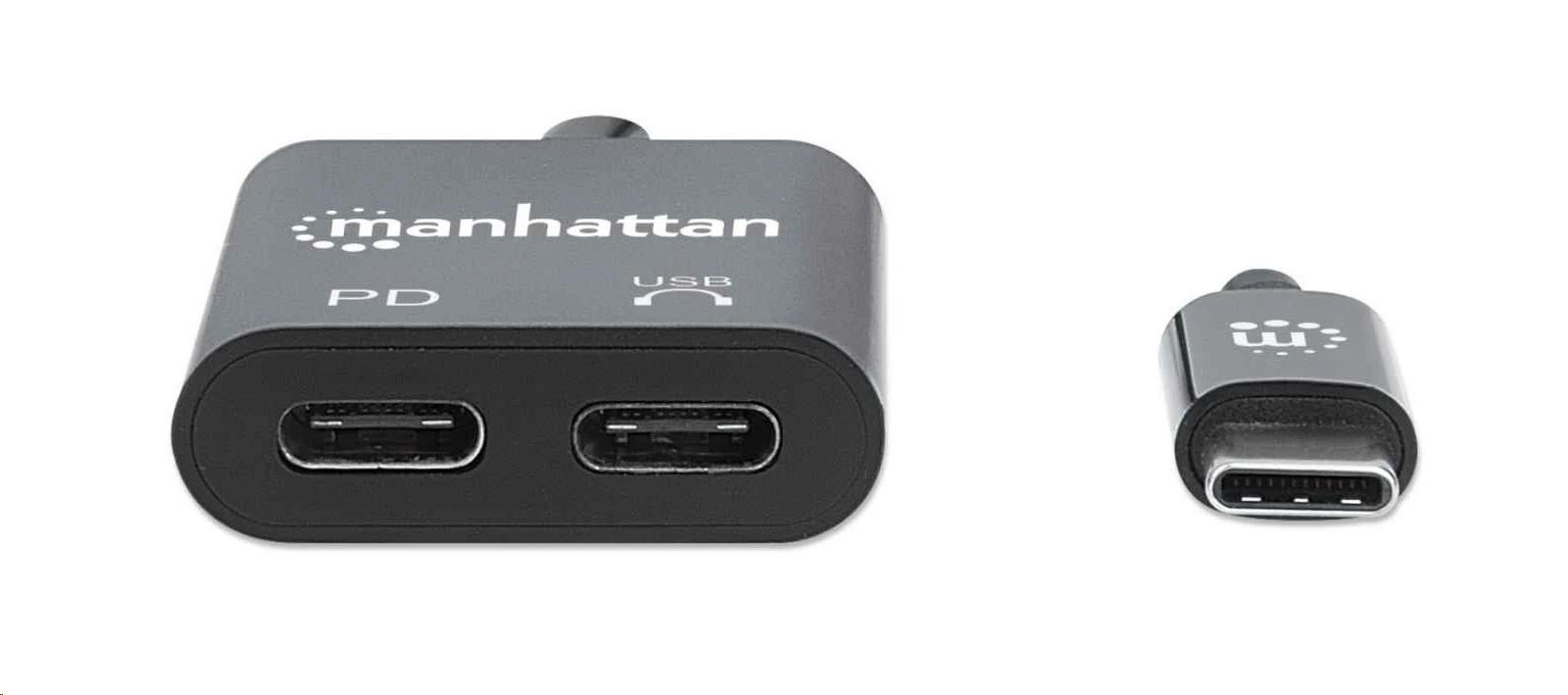

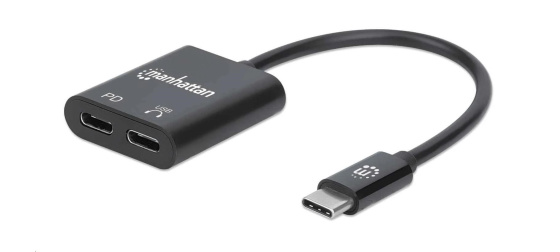

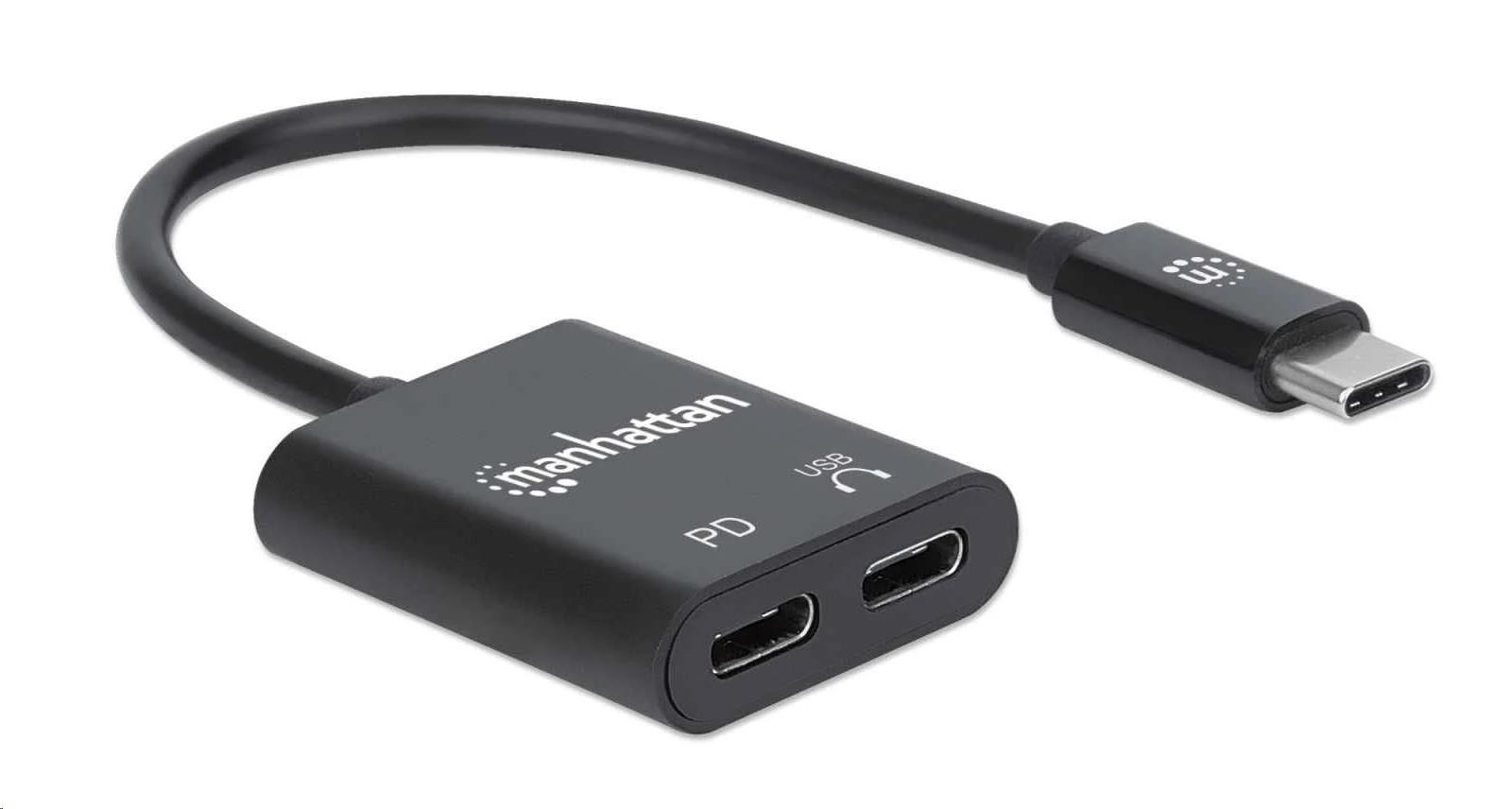

MANHATTAN USB 2.1 Sound Adapter, USB Type-C to C/F (audio) & C/F (PD) black, Retail Box

Sound and Power in a USB-C Audio Adapter
Want to listen to your USB-C headset and charging the device it connects to simultaneously? Add one USB-C audio port and get plenty of power for all your attached devices with the Manhattan USB-C Audio Adapter. Simply connect it to your computer's USB-C port, connect your computer's charging cable to the Power Delivery port on the adapter, and plug in your headphones. The adapter's Power Delivery technology charges your computer and all the devices it connects to so you can listen to music, favorite podcast or media program while you get work done. The jack also supports audio input if your headphone cable has a built-in mic so you can be heard and understood better in your online communications. Improve your productivity and get the audio connection you need with this USB-C audio adapter.

• Simultaneous super-fast charging and audio control over a single USB-C connection
• Durable point of connection so you can enjoy your USB-C headphones on any USB-C device while charging it*
• Supports USB Power Delivery (PD) function up to 60 W; requires an external PD charger – available from Manhattan
• Three-channel Analog-to-Digital Converters (ADC) for enhanced audio output and microphone input
• Supports microphones and audio playback
• Plug and play; no drivers or installation required
• Ultra-slim and lightweight design, ideal for traveling
• Three-year warranty
  *On some smartphone models, some of the function keys of a headset cannot be used

Standards and Certifications
USB 2.0
USB audio device class V 2.0
PD 2.0
CE
FCC
RoHS2
WEEE
REACH

General
Bus-powered
Supports 60 W PD

Connections
USB-C male
USB-C female
USB-C female PD charging port

Physical
Dimensions: 36.2 x 30.3 x 9.3 mm (1.43 x 1.19 x 0.37 in.)
Cable length: 112 mm (4.3 in.)
Weight: 11 g (0.38 oz.)
Housing: ABS

Operating Environment
Operation Temperature: 0 – 85°C (32 – 185°F)
Storage Temperature: -40 – 85°C (-40 – 185°F)
Humidity (noncondensing): 0 – 95%

System Requirements
USB-C port

Package Contents
USB-C Audio Adapter
Quick Instruction Guide
