A high-speed cable that delivers high-definition performance.

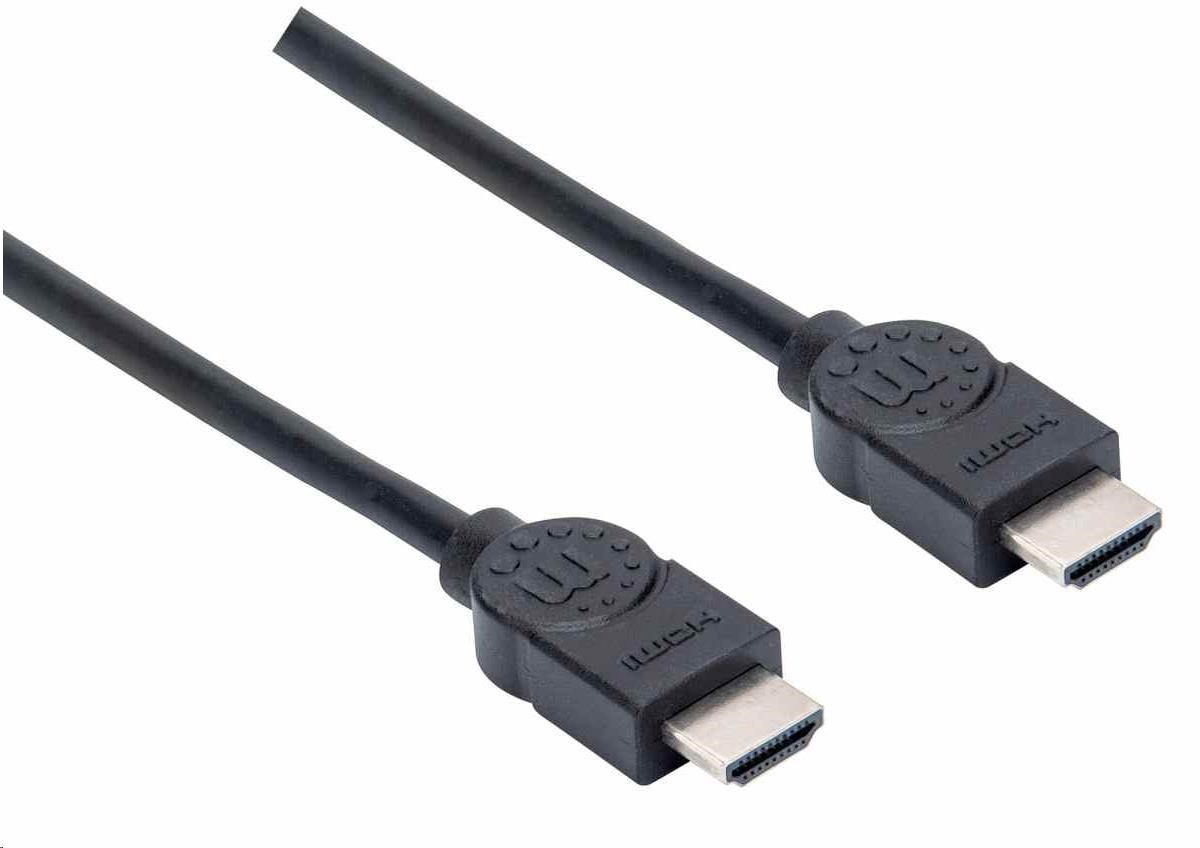

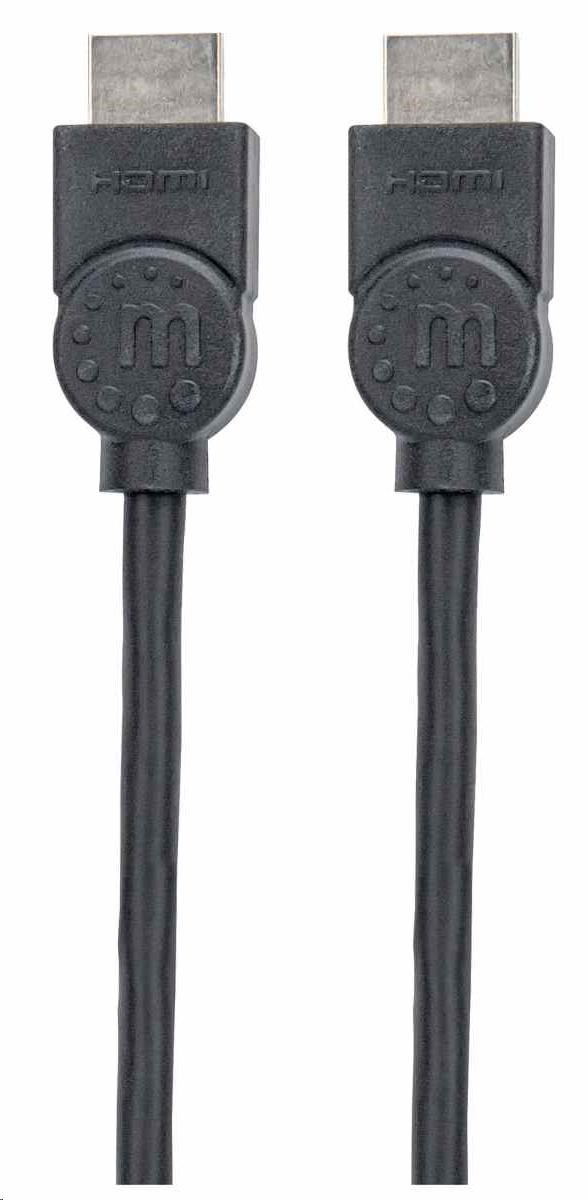

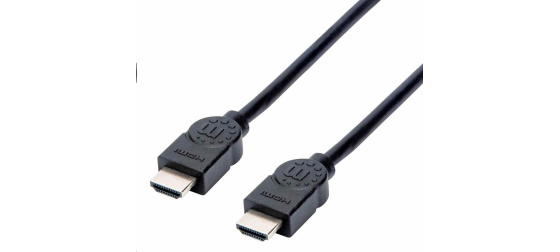

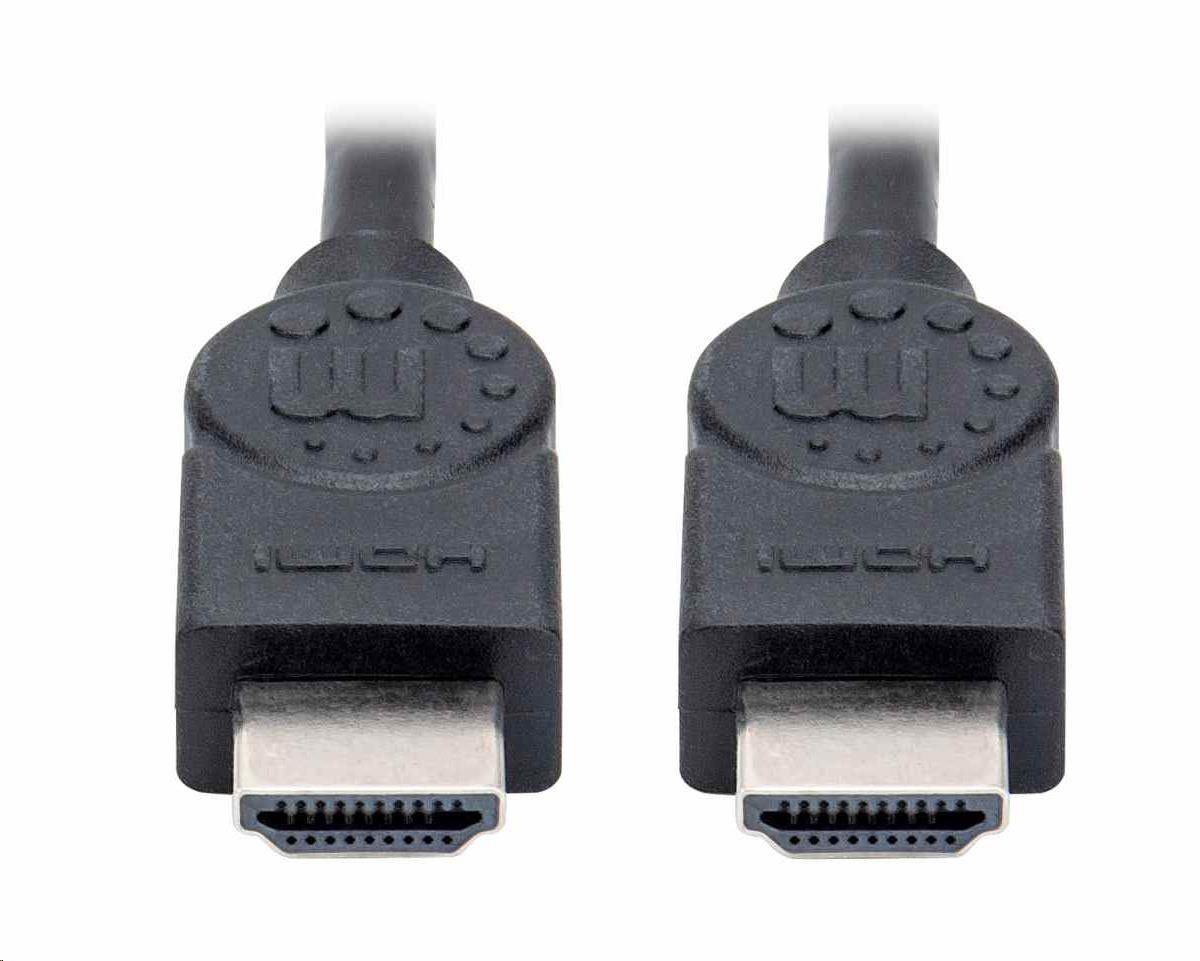

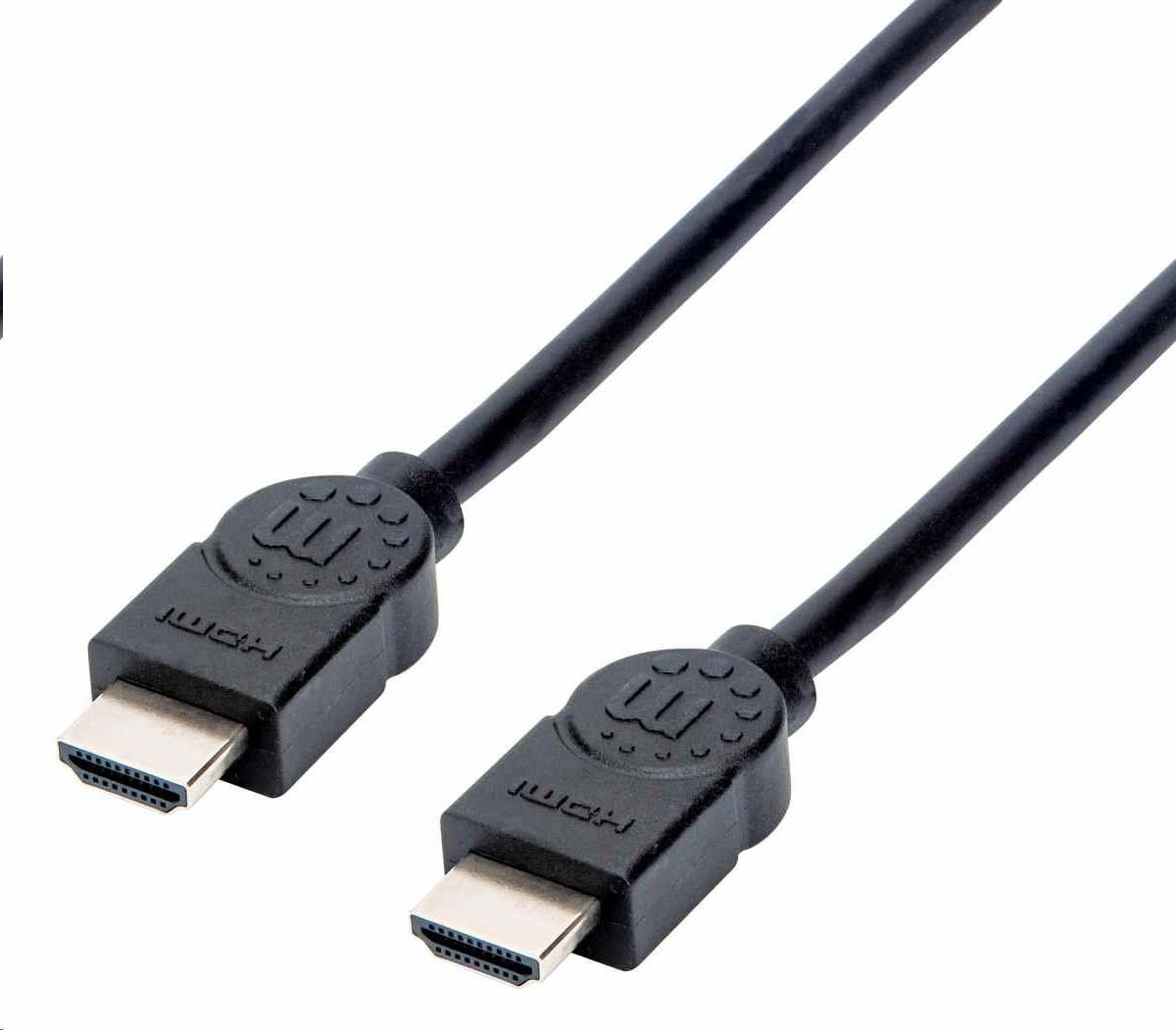

HDMI has become the standard digital connection, delivering the highest-quality audio and video signal over a single cable. The Manhattan High Speed HDMI Cable is designed and carefully constructed to meet the evolving needs of the high-definition marketplace. This shielded cable provides the highest resolution possible at 4K x 2K, an audio return channel and a bandwidth of 10.2 Gigabits per second at 340 MHz. Offering a high-quality connection between HDMI-enabled sources and displays, the Manhattan High Speed HDMI Cable provides ultra-high-definition video and multichannel, digital audio with increased performance characteristics and greater accuracy.
TECHNICAL SPECIFICATIONS
Standards and Certifications | ISO9001 |
Package Contents | High Speed HDMI Cable |
General | - Bandwidth: 10.2 Gbps at 340 MHz - Meets or exceeds existing HDMI standards |
Connectors | - Two HDMI 19-pin male - Gold-plated contacts - Molded PVC boot - Built-in strain relief |
Operating Environment | |
Operation Temperature | 0 – 40°C (32 – 104°F) |
Storage Temperature | -20 – 60°C (-4 – 140°F) |
Humidity (noncondensing) | 0 – 96% |
Cable | |
Current rating | 0.5 A DC |
Withstanding voltage | 300 V DC |
Insulation resistance | 5 MOhms |
Conductive resistance | 5 Ohms |
Length | 1.5 m (5 ft.) |
.
