Easily add more computers or other Ethernet devices to your home network.

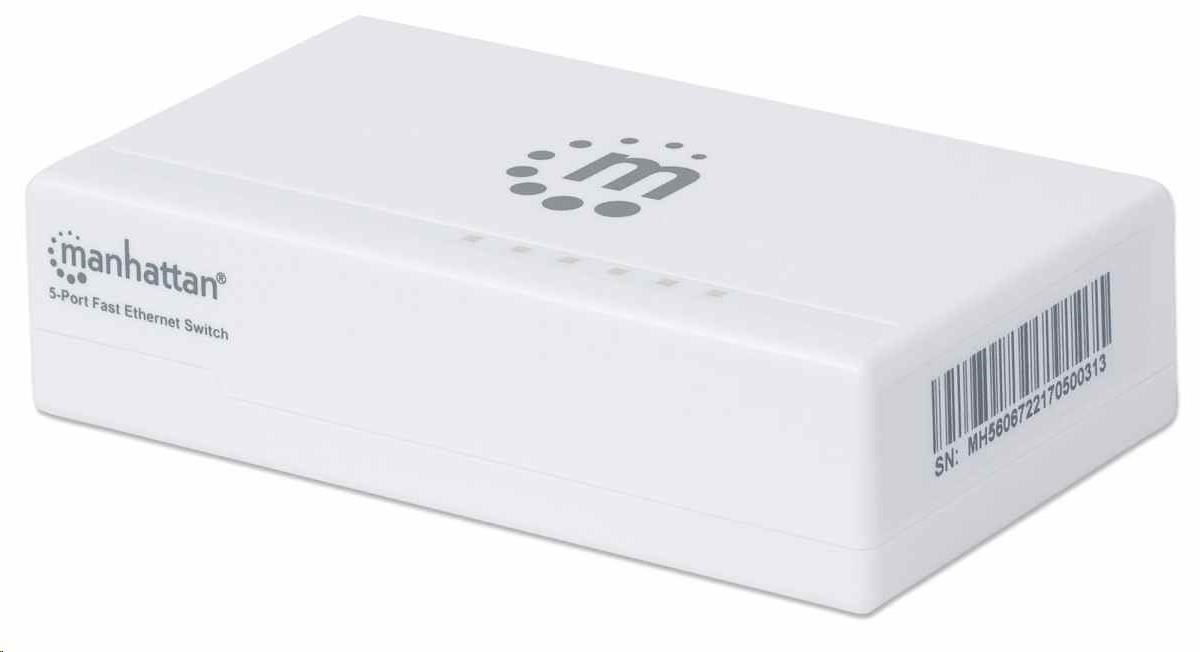

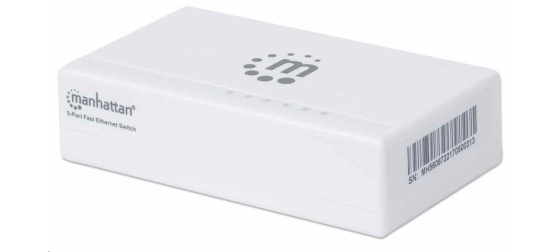

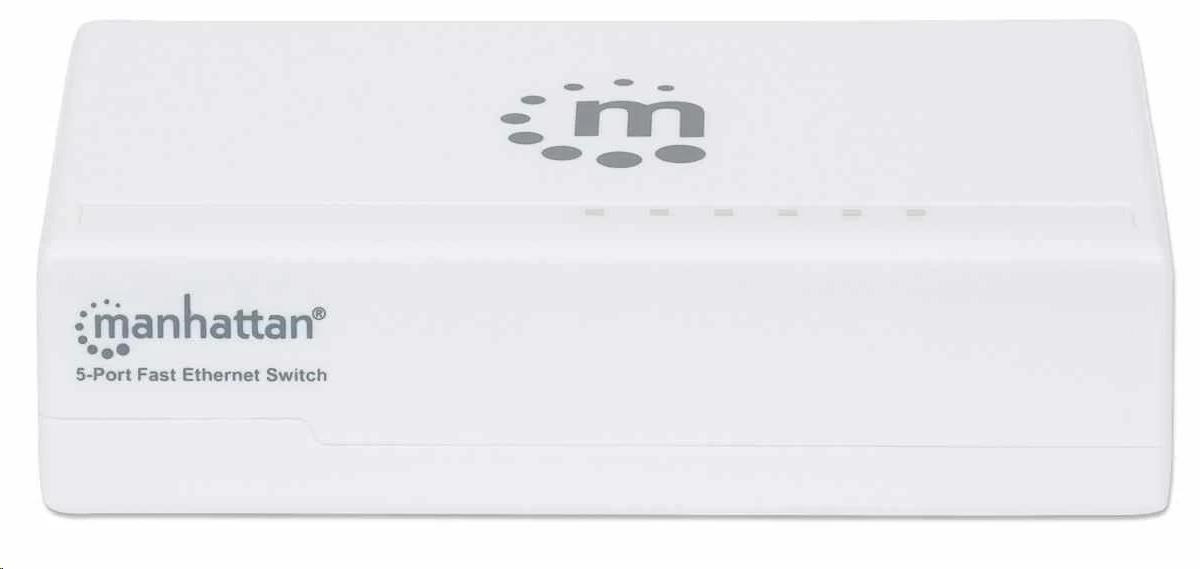

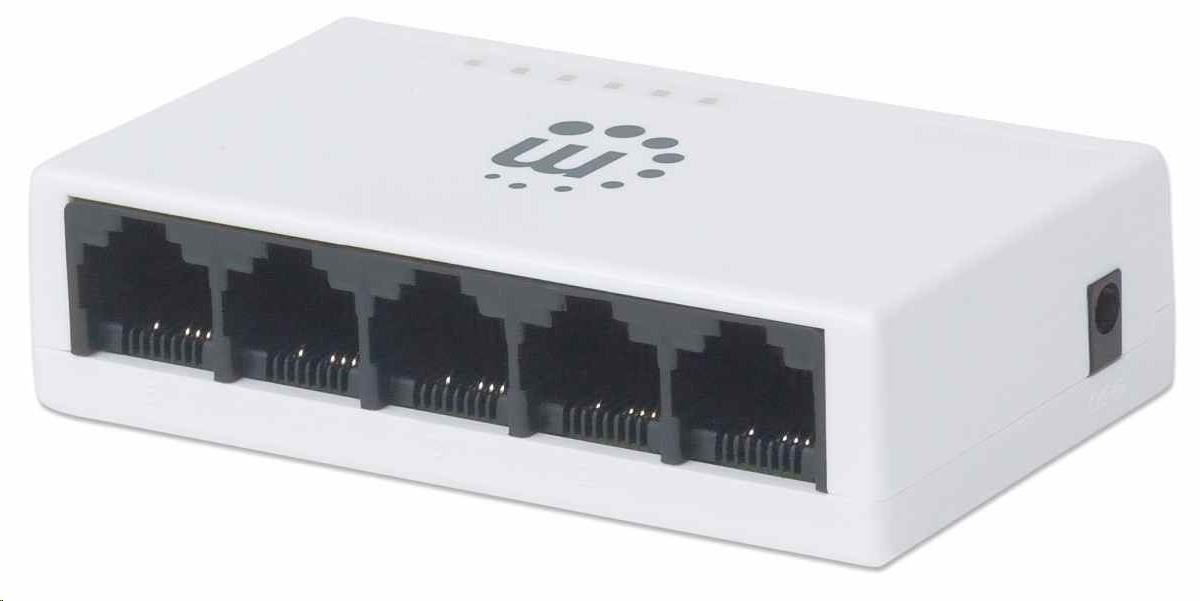

The Manhattan 5-Port Fast Ethernet Switch is perfect for the home environment and small-size business looking for a durable switch that is reliable and easy to install.
Versatile

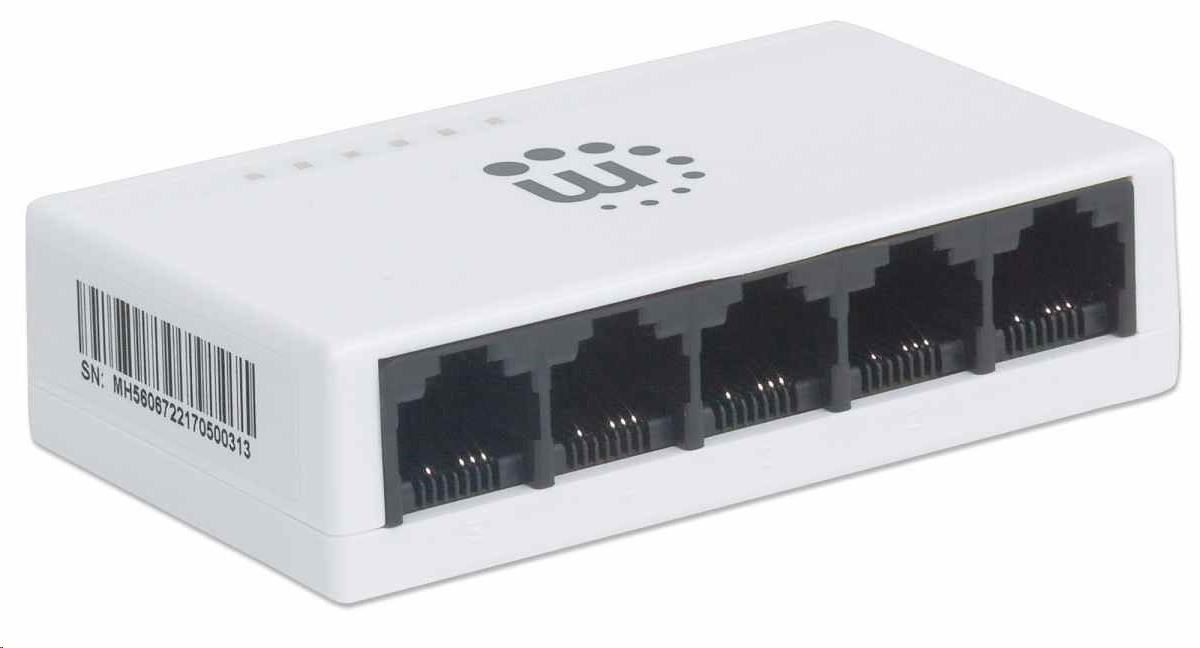

The Fast Ethernet Switch connects up to five computers, servers, printers, switches or any other Ethernet devices at 10 or 100 Mbps over Ethernet cables, and works with any operating system.
Easy to Install and Maintain
The auto features of this switch make installation plug and play and hassle free. There is no configuration required, and you don’t need to worry about using special cables for uplink ports, since each port is equipped with Auto MDI/MDI-X crossover.
TECHNICAL SPECIFICATIONS
Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE802.3x Flow Control and Backpressure |
Package Contents | 5-Port Fast Ethernet Switch Power adapter User manual |

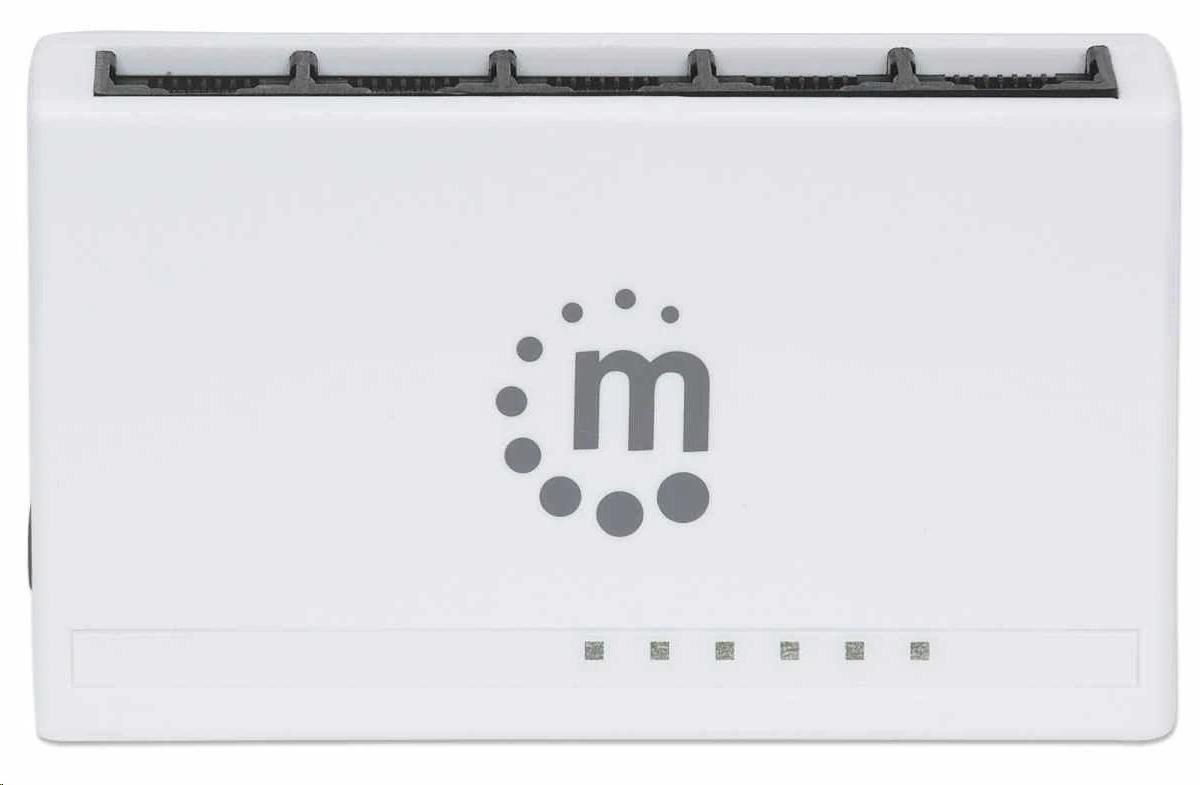

LEDs | Power Link/Activity 100 Mbps |

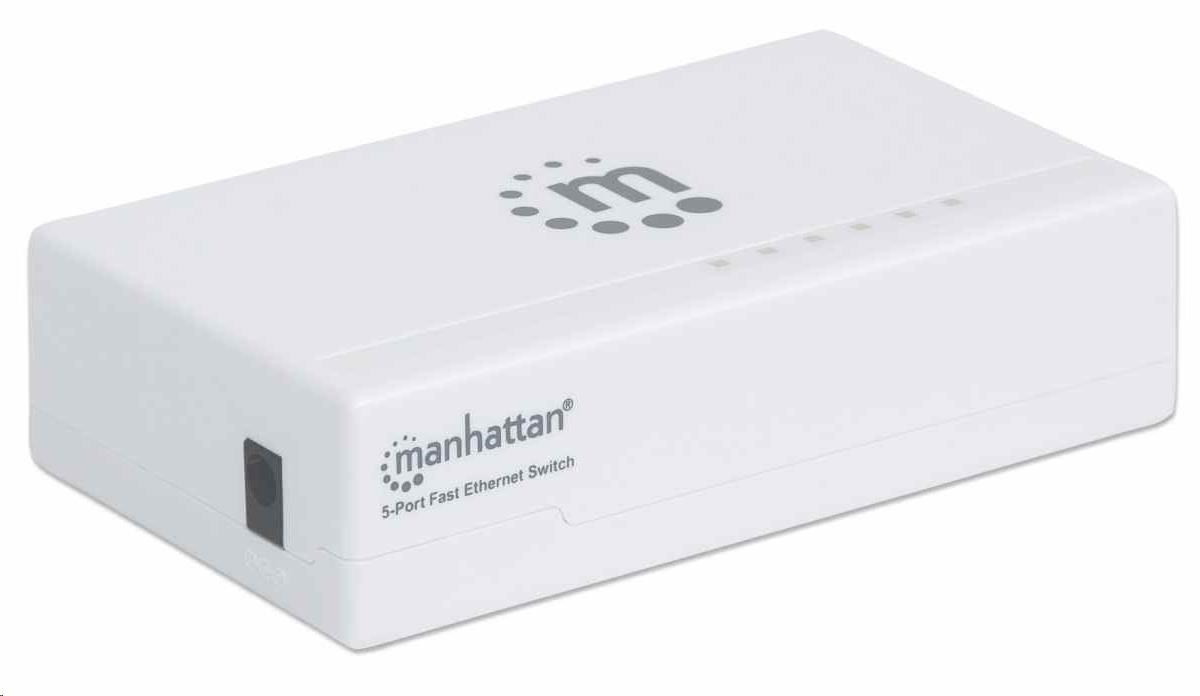

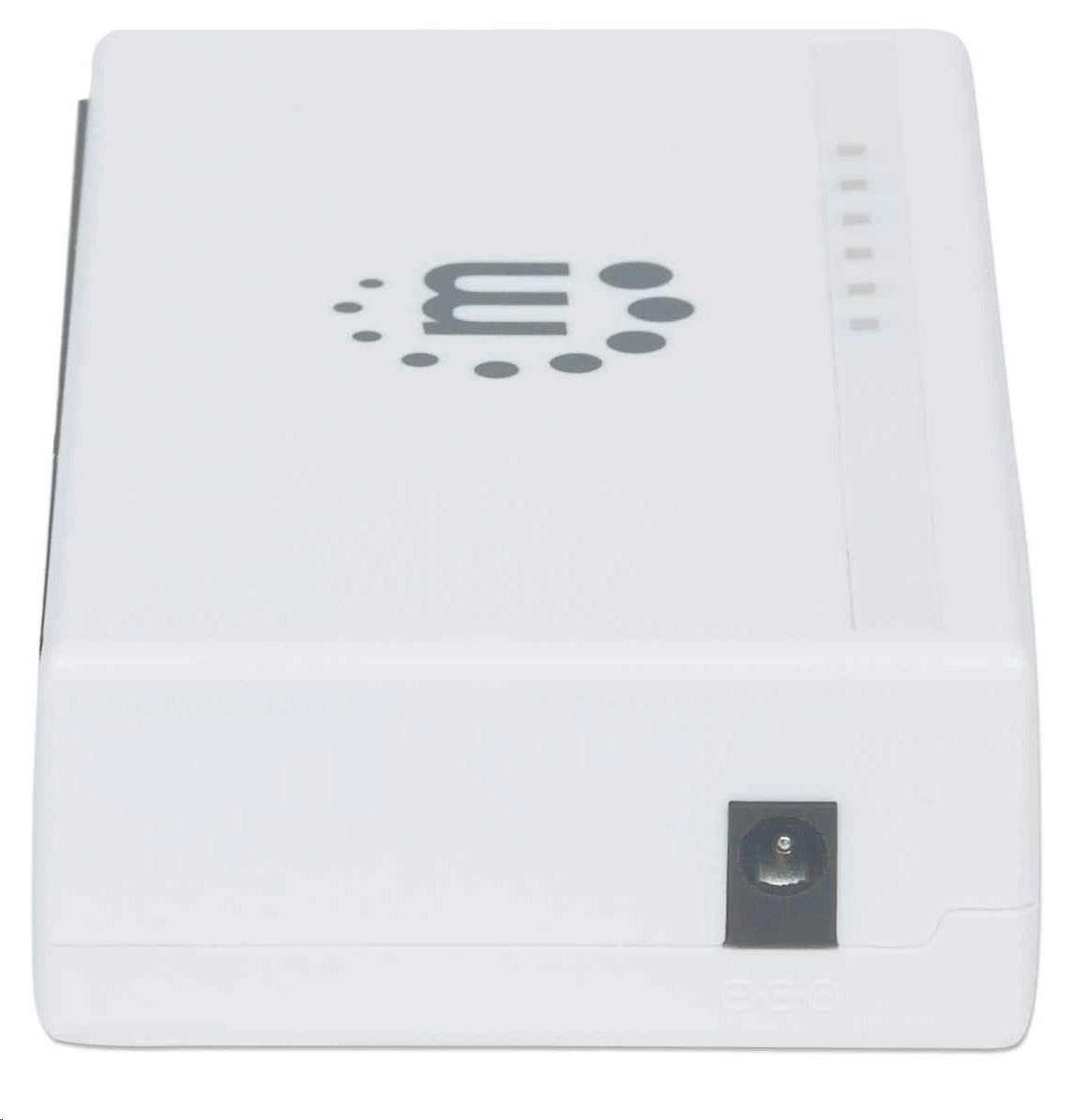

Power | External AC adapter: 5 V, 0.5 A |
Environment | |
Dimensions (W x L x H) | 97 x 45 x 23 mm (3.81 x 1.77 x 0.9 in.) |
Operating temperature | 0 – 40°C (32 – 104°F) |
Humidity (noncondensing) | 10 – 90% |
General | |
Ports | 5 10/100 Mbps NWay switch T ports |
Cable | Cat3, 4, 5 UTP/STP |
Duplex modes | all ports (up to 200 Mbps) |
Uplink | all ports Auto MDI/MDX (Auto Uplink) |
Switch architecture | store and forward switch technology |
Filter/forward rate | - 10BaseT: 14,880 pps (packets per second) - 100Base-TX: 148,800 pps (packets per second) |
Certifications | FCC Class B, CE, RoHS |
.
