Classic Design Refined

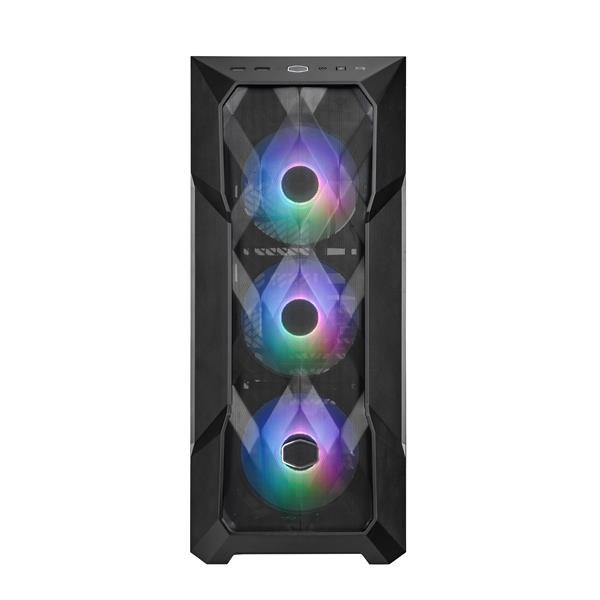

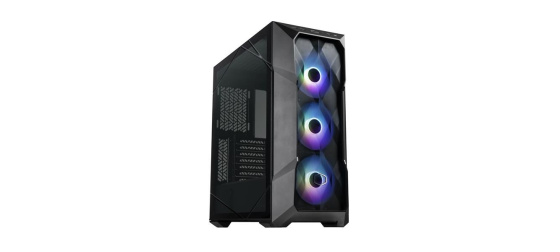

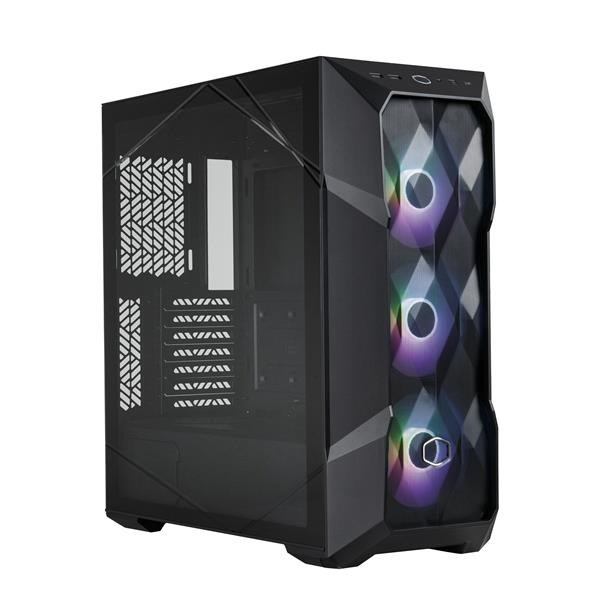

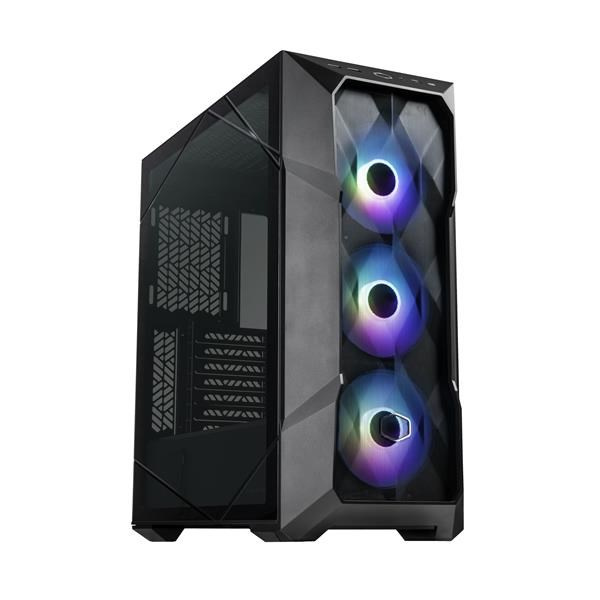

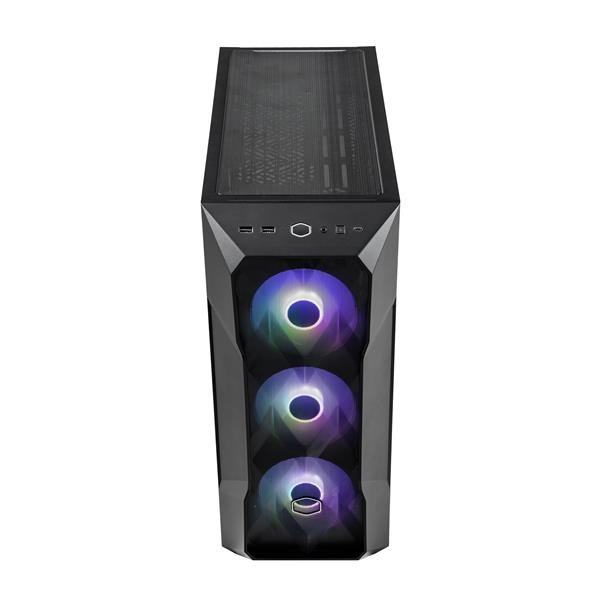

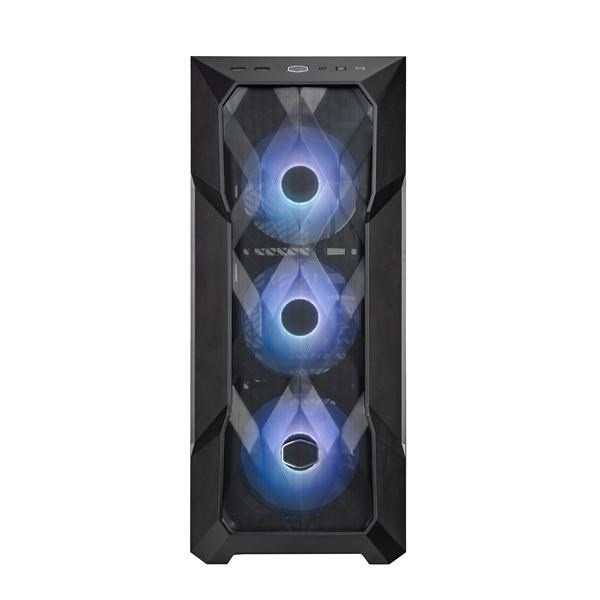

TD500 Mesh V2’s iconic polygonal design paired with included three 120mm ARGB fans engulfs your system in an ever-changing glow, shifting based on the angle viewed to reflect the uniqueness of each gamer’s personality.
Cooler Master’s FineMesh provides the functionality of dust filtration while simultaneously allowing for generous intake and the ultimate experience: smooth running graphics, rapid response rates and blissfully streamlined gaming. Upgraded with USB 3.2 Gen 2 Type C support, TD500 Mesh V2 keep your data transfer at lightning speeds as you power through and play with style.
TECHNICAL SPECIFICATIONS
Product Name | TD500 Mesh V2 |
Product Number | TD500V2-KGNN-S00 |
Exterior Color | Black |

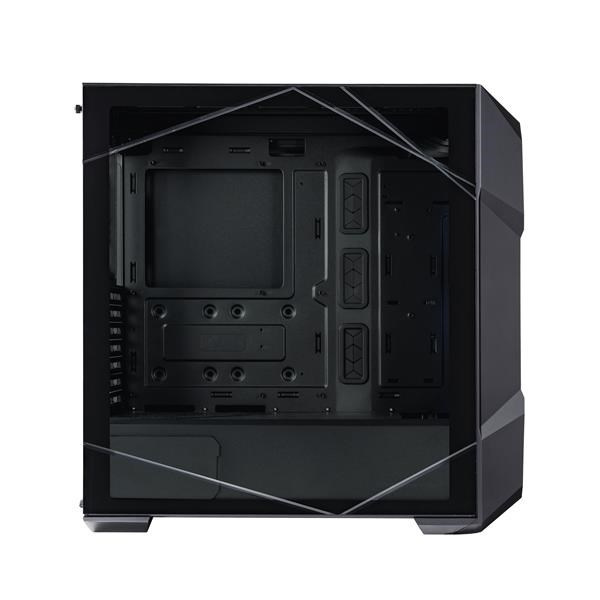

Material | Exterior - Steel, Mesh, Plastic Left Side Panel - Tempered Glass |
Dimensions (L x W x H) | incl. Protrusions - 499x210x500mm excl. Protrusions - 430x210x477mm |
Volume (Liters excl. Protrusions) | 50L |
Motherboard Support | Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX* (*up to 12” x 10.7” motherboards, may impact cable management feature) |
Expansion Slots | 7 |
Drive Bays | 5.25“ ODD - N/A 3.5” HDD - 2 2.5” SSD - 3 |

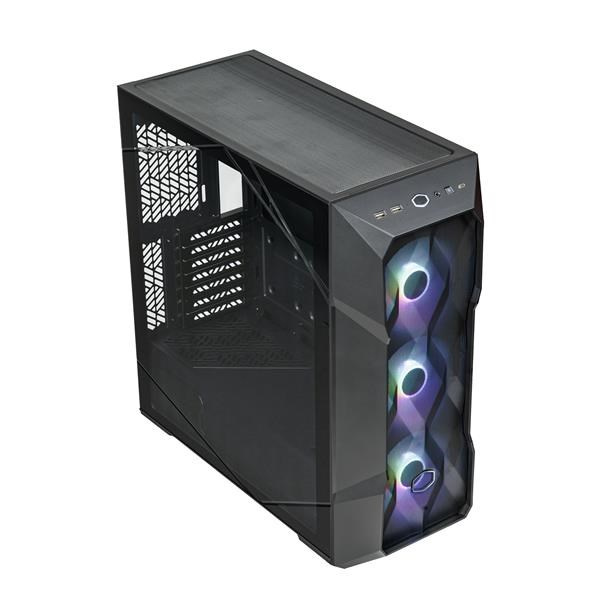

I/O Panel | USB Ports - 2 x USB 3.2 Gen 1 + 1x USB3.2 Gen 2 type C Audio - Audio jack x1 Other - 1 x ARGB fan Hub |
Pre-installed Fan(s) | Top - N/A Front - 3 x 120mm CF120 ARGB Rear - N/A |
Fan Support | Top - 3 x 120mm, 2 x 140mm Front - 3 x 120mm, 2 x 140mm Rear - 1 x 120mm |
Radiator Support | Top - 120/140/240/280/360mm (recommended maximum thickness - 55mm) Front - 120 / 140 / 240 / 280 / 360mm Rear - 120mm |
Clearances | CPU Cooler - 165mm / 6.49” Power Supply - 200mm (Recommended up to 170mm) Graphics Card - 410mm / 16.14” |

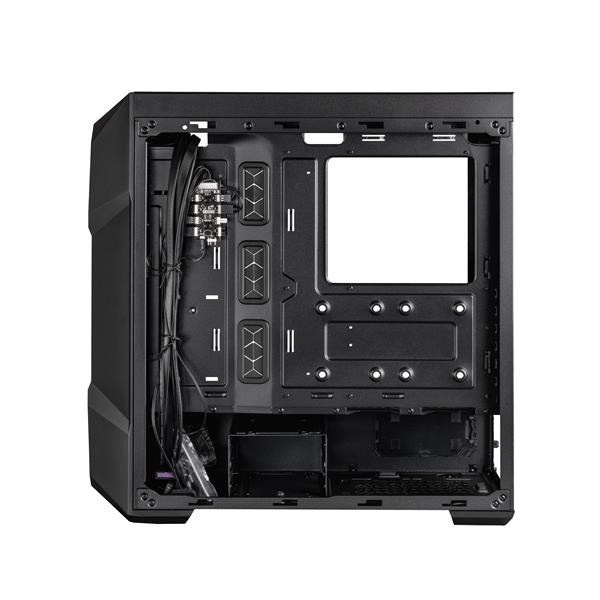

Cable Routing | Behind MB Tray - 19mm / 0.74” |
Dust Filters | Front, Top, Bottom |
Power Supply Support | Bottom Mount, ATX |
Warranty | 2 Years |
.
