Power up and get ready to shine.

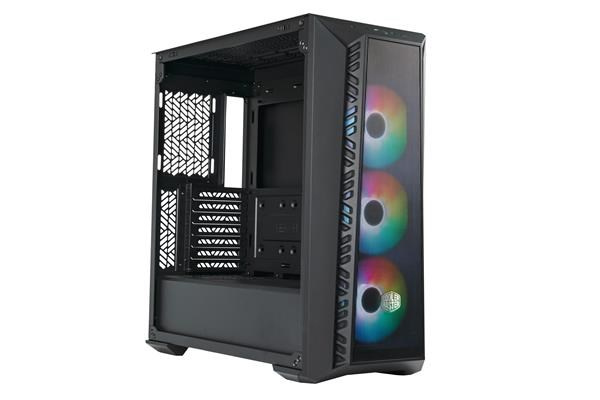

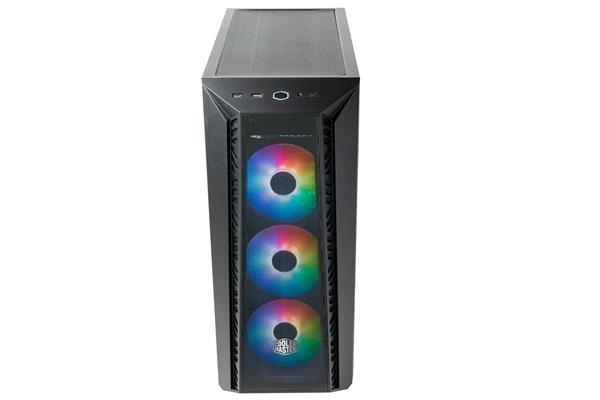

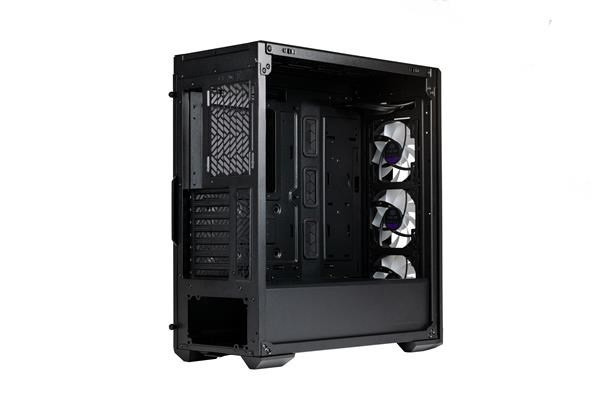

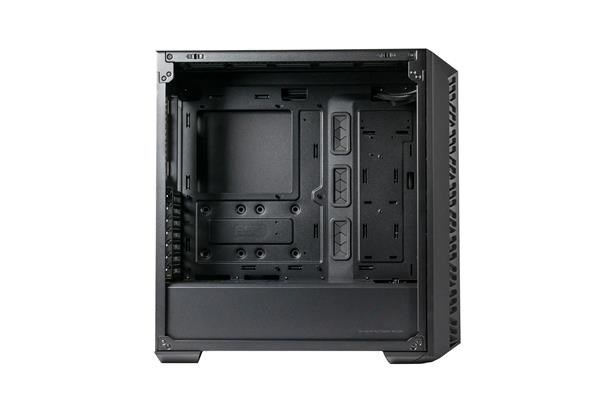

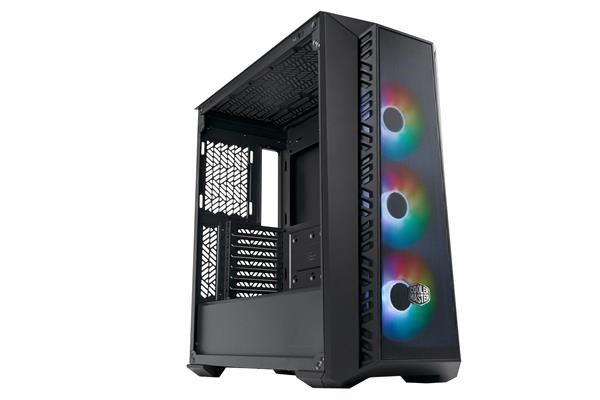

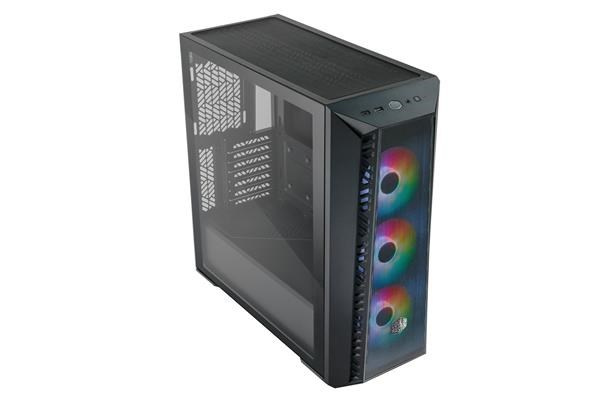

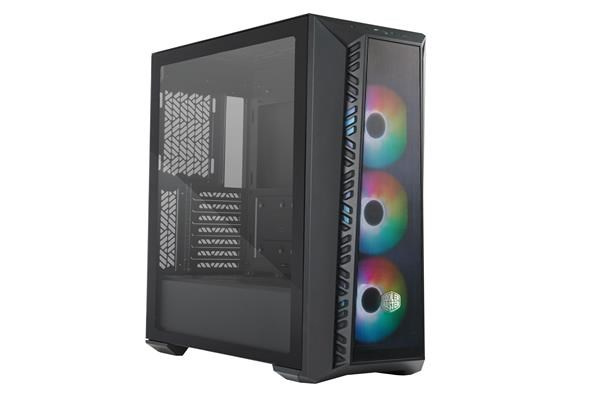

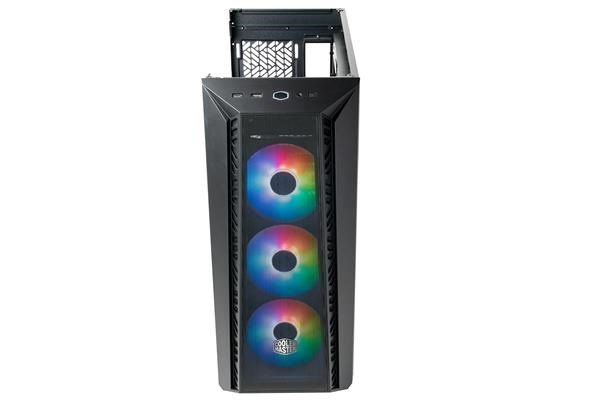

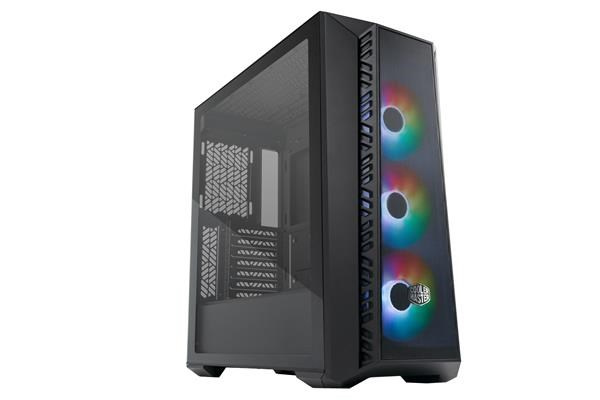

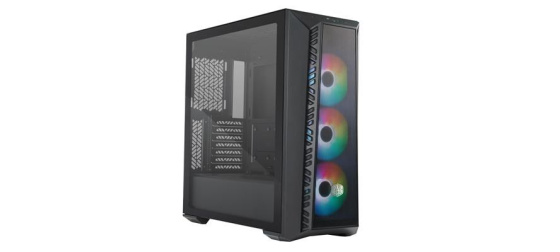

MasterBox 520 Mesh is the ideal chassis for both novice and experienced gamers alike, providing users multiple options in case design to satisfy different needs. Whether you place upmost value on system performance and high-quality gaming experiences, or dazzling aesthetics and an outlook that stands out, MasterBox 520 Mesh has something in for you. Pre-installed with three CF120 ARGB fans, your system is brought to life with stunning lighting effects, completely customizable to match your theme or preference. Additional mechanical upgrades such as a removable top panel and robust dust filter ensure a pleasant, hassle-free installation experience.
TECHNICAL SPECIFICATIONS
Product Number | MB520-KGNN-S00 |
Exterior Color | Black |
Material | Exterior - Mesh, Steel, ABS Plastic, Tempered Glass Left Side Panel - Tempered Glass |
Dimensions (L x W x H) | incl. Protrusions - 502x 210 x 498mm Body size - 443x 210 x 498mm |
Volume | 50L |
Motherboard Support | Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX* (*up to 12” x 10.7” motherboards, may impact cable management feature) |
Expansion Slots | 7 |
Drive Bays | 5.25" ODD - 0 3.5" HDD - 2 2.5" SSD - 3 |
I/O Panel | USB Ports - 1 x USB 3.2 Gen1 Type-A + 1x USB 3.2 Gen2 Type-C Audio In / Out - 1x 3.5mm Headset Jack (Audio + Mic) Others - 1x RESET/ARGB button |
Included Accessories | ARGB Fans Hub |
Included Fan(s) | Top - N/A Front - 3 x CF120 ARGB Rear - N/A |
Fan Support | Top - 3 x 120mm / 2 x 140mm Front - 3 x 120mm / 2 x 140mm Rear - 1 x 120mm |
Radiator Support | Top - 120/140/240/280/360mm (recommended maximum thickness - 55mm) Front - 120/140/240/280/360mm Rear - 120 mm |
Clearances | CPU Cooler - 165mm / 6.49” Power Supply - 200mm (Recommended up to 170mm) Graphics Card - 410mm / 16.10” |
Dust Filters | Bottom, Front, Top |
Power Supply Support | ATX |
Warranty | 2 Years |
.
