CHIEFTEC zdroj TFX GPF-300P, 300W, ATX-12V V.2.3, PFC, full range
Kód: 1022624Skladem6ks
Termín a způsob doručení
Výkon zdroje (ve W):300; Formát zdroje:TFX; Konektory:SATA 15-pin, Molex, FDD; Konektory pro základní desku:ATX 24-pin, EPS 8-pin; Efektivita zdroje:85+.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
1022624
EAN:
4710713234666
Záruka:
24 Měsíc(ů)
Formát zdroje:
TFX
Konektory:
SATA 15-pin, FDD, Molex
Konektory pro základní desku:
ATX 24-pin, EPS 8-pin
Modulární kabeláž:
Ne
Efektivita zdroje:
85+
Výkon zdroje (W):
300

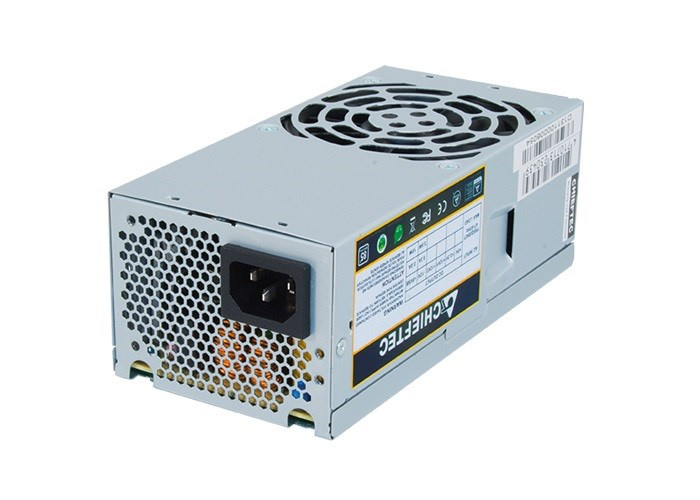

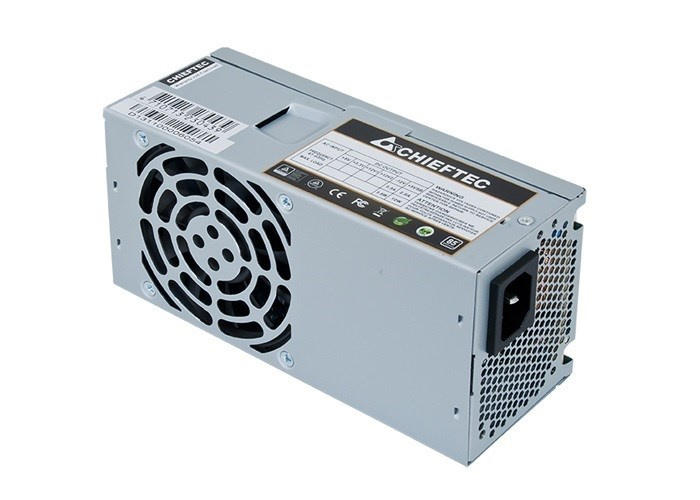

Popis CHIEFTEC zdroj TFX GPF-300P, 300W, ATX-12V V.2.3, PFC, full range
GPF-300P
The latest generation of TFX power supplies comes with a new model: GPF-300P (12V version 2.3). Equipped with both a state-of-the-art interior and 80PLUS® Bronze efficiency, this power supply is ideal for home entertainment systems or small size systems. Compatible with both Intel/AMD processors, featuring with active PFC and a smooth running, temperature-controlled fan, the CHIEFTEC GPF-300P provides reliable performance for enthusiast seeking for efficiency.
SPECIFICATIONS:
Performance
.| Model | Smart 300W |
| Article no. | GPF-300P |
| EAN code | 4710713234666 |
| Weight (without/with package) | 1.07 kg / 1.13 kg |
| AC Input | 115-230V / 6.3A |
| Frequency | 47-63Hz |
| +5V | 15A |
| +3,3V | 16A |
| +5V & +3,3V combined | 95W |
| +12V 1 | 14A |
| +12V 2 | 15A |
| +12V 1 & +12V 2 combined | - |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VsB | 2.0A / 10W |
| Maximum Power | 300W |
Connectors
| 20+4PIN ATX | 1 |
| 8 PIN EPS (4+4) | 1 |
| SATA | 4 |
| MOLEX | 2 |
| FLOPPY | 1 |
Cable length
| 20+4PIN ATX | 300 |
| 8 PIN EPS (4+4) | 350 |
| MOLEX/MOLEX/FLOPPY | 350/150/150 |
| SATA | 2x 350/150 |
Features
| Specification | ATX 12V 2.3 |
| Form factor | PS II |
| Efficiency | 80 PLUS® Bronze |
| Dimension (DxWxH) | 175mm x 85mm x 65mm |
| PFC | Active PFC (0.9) |
| Fan | 80mm silent fan |
| Security |
|
| Warranty | 24 Months |
