http://www.chieftec.eu/en/psus/smart-series/sfx-350bs-l.html

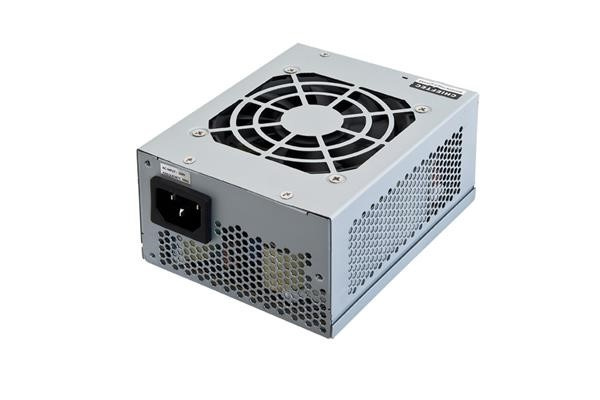

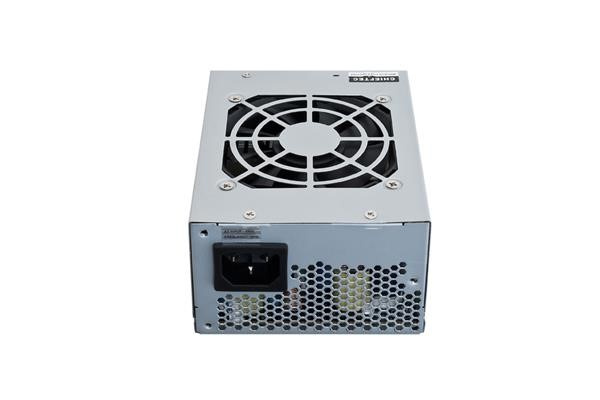

The SFX-350BS-L is a special version with a layout turned around by 90o in comparison to regular SFX power supplies. The SFX-350BS-L is always used when the space is very tight. The SFX-350BS-L convinces by its 350W performance and an efficiency of over 85%. Its Ultra Silent fan is powerful enough to give up other case fans.
Performance
AC Input: | 230V / 3A |
Frequency: | 50 Hz |
+5V: | 15A |
+3,3V: | 16A |
+5V & +3,3V combined: | 105W |
+12V 1: | 18A |
+12V 2: | 18A |
+12V 1 & +12V 2 combined: | 324W |
+12V 3: | N/A |
+12V 4: | N/A |
+12V 3 & +12V 4 combined: | N/A |
P.F.: | >0,9 |
-12V: | 0,3A / 3,6W |
+5VSB: | 3A / 15W |
Maximum Load: | 350W |
Connectors
Native cable:
20+4PIN: | |
===300mm===[20+4PIN] | |
SATA: | |
===300mm===[SATA]===100mm===[SATA] | |
Molex/Floppy: | |
===300mm===[Molex]===100mm===[Molex]===100mm===[Floppy] | |
4PIN 12V: | |
===300mm===[4PIN 12V] | |
4PIN 12V: | |
===300mm===[4PIN 12V] |
Specification: | ATX 12V 2.3 |
Form factor: | SFX |
Efficiency: | >85% |
Dimension (DxWxH): | 125 mm x 100 mm x 64 mm |
PFC: | Active (0,9) |
Fan dimension: | 80mm silent fan |
Security: |
|
.
