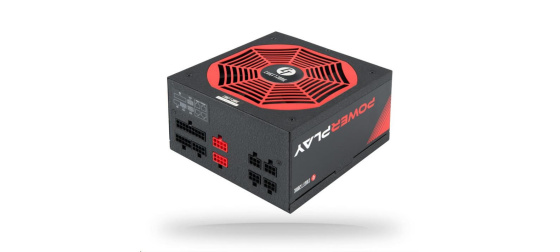

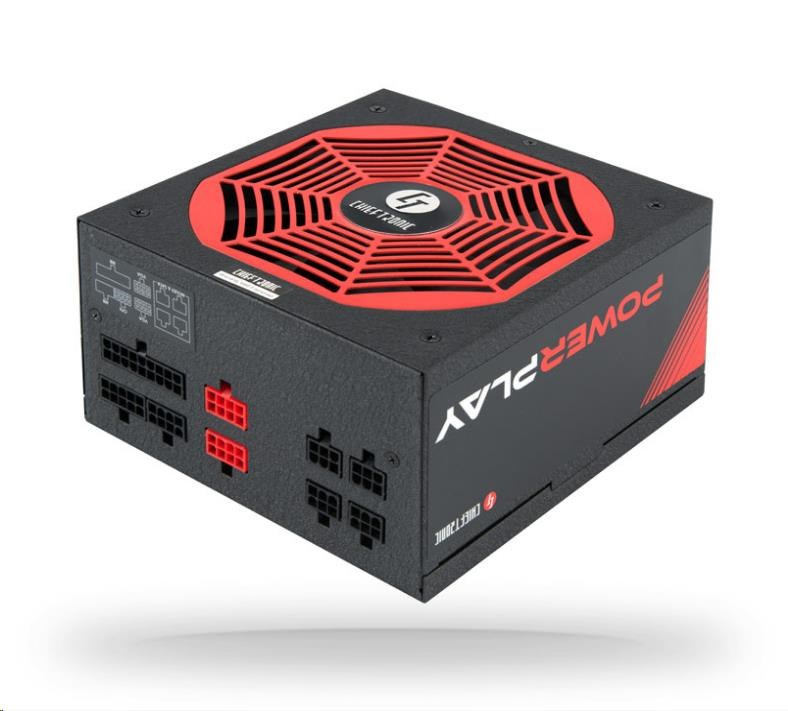

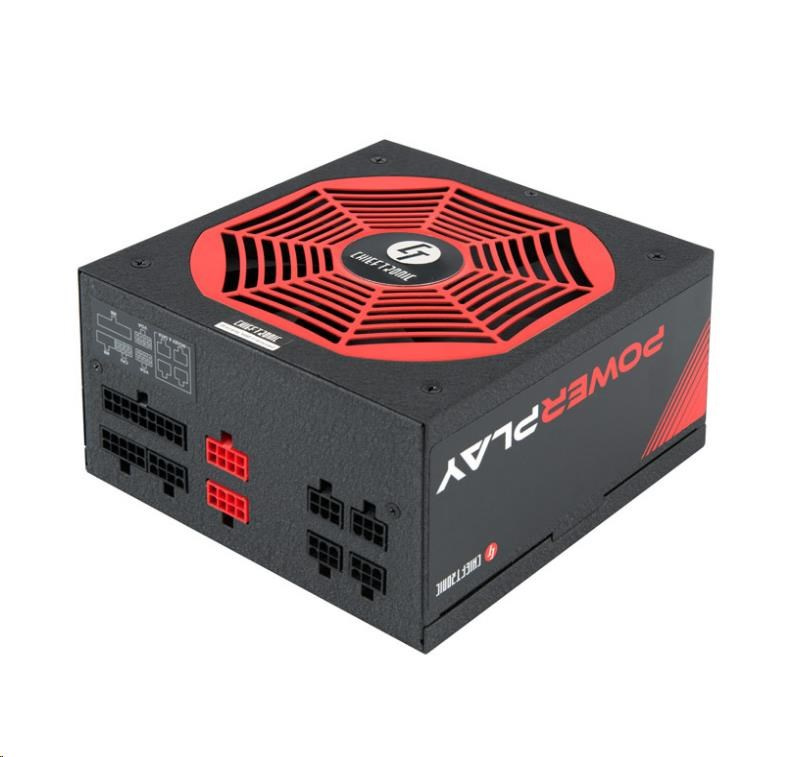

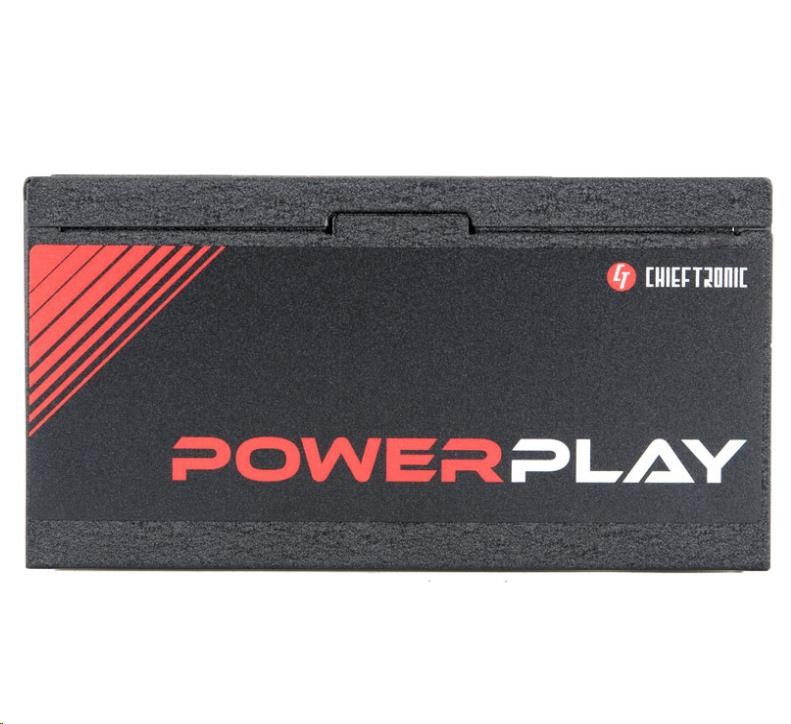

CHIEFTEC zdroj Chieftronic GPU-750FC, 750W, PFC, 14cm fan, 80+ Gold
Kód: 1022569Není skladem
Termín a způsob doručení
Formát zdroje:ATX; Výkon zdroje (ve W):750; Efektivita zdroje:80 Plus Gold; Konektory:PCIe 8-pin, SATA 15-pin, Molex, FDD; Konektory pro základní desku:ATX 24-pin, EPS 8-pin; Modulární kabeláž.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
1022569
EAN:
753263076083
Záruka:
36 Měsíc(ů)
Formát zdroje:
ATX
Konektory:
PCIe 8-pin, Molex, FDD, SATA 15-pin
Konektory pro základní desku:
EPS 8-pin, ATX 24-pin
Modulární kabeláž:
Ano
Efektivita zdroje:
80 Plus Gold
Výkon zdroje (W):
750
Popis CHIEFTEC zdroj Chieftronic GPU-750FC, 750W, PFC, 14cm fan, 80+ Gold
CHIEFTEC GPU-750FC
- Fully modular cable management
- 80 PLUS Gold Efficiency
- Premium Japanese capacitors for minimal ripple noise

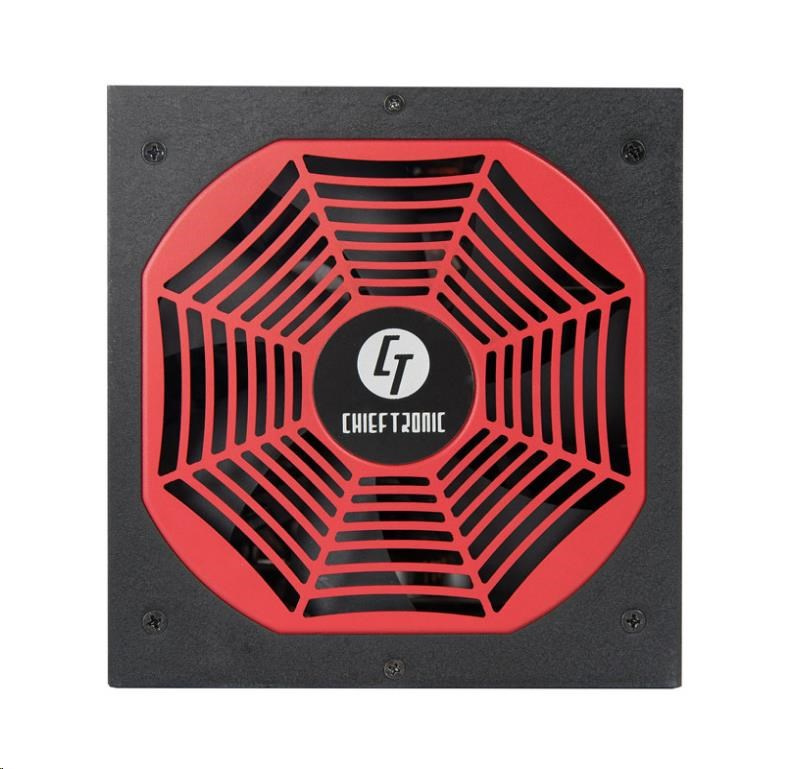

- Quality case housing finish with eye-catching fan filter design
The Chieftronic PowerPlay series builds on Chieftec’s many years of experience developing top-quality power-supplies and combines top specs like 80 PLUS Gold (at 550W, 650W, 750W) and 80 PLUS Platinum (at 850W, 1050W), premium Japanese capacitors for low ripple noise with an eye-catching fan filter design to offer an attractive PSU for users who want a true top-tier product.
Featuring a rugged build quality, the PowerPlay series measures only 160mm in length, therefore comfortably fitting into almost any system supporting ATX format PSU’s and leaving plenty of space for easy cable management.
This combination of efficiency, performance and build design makes the PowerPlay series a true top-of-the-line model leading Chieftronic’s PSU line-up.
TECHNICAL SPECIFICATIONS
| PERFORMANCE | |
| Model | PowerPlay 750W |
| Article no. | GPU-750FC |
| EAN code | 0753263076083 |
| Weight (without/with package) | 2.44 kg / 2.85 kg |

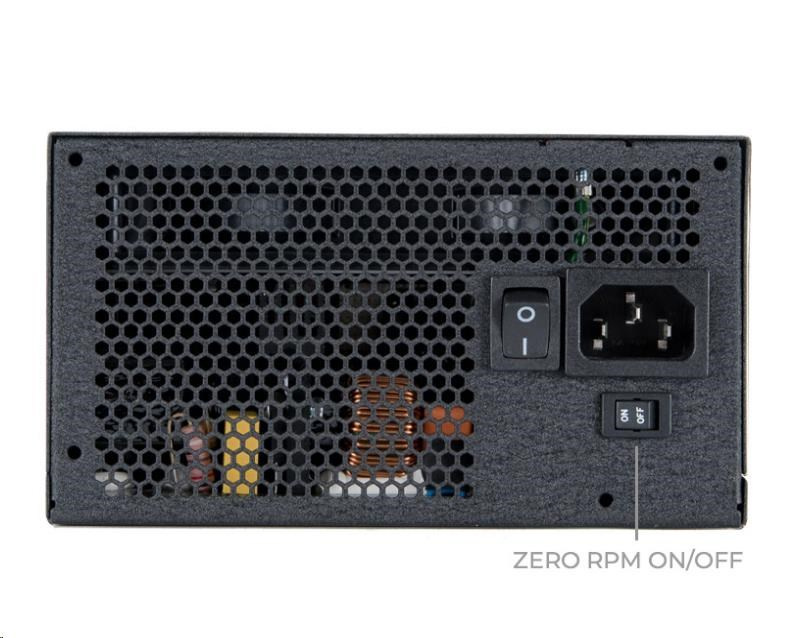

| AC Input | 100 - 240V / 10.0A |
| Frequency | 47 - 63Hz |
| +5V | 22A |
| +3,3V | 22A |
| +5V & +3,3V combined | - |
| +12V 1 | 62.5A / 750W |
| +12V 2 | - |
| +12V 1 & +12V 2 combined | - |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VsB | 3,0A / 15W |
| Maximum Power | 750W |

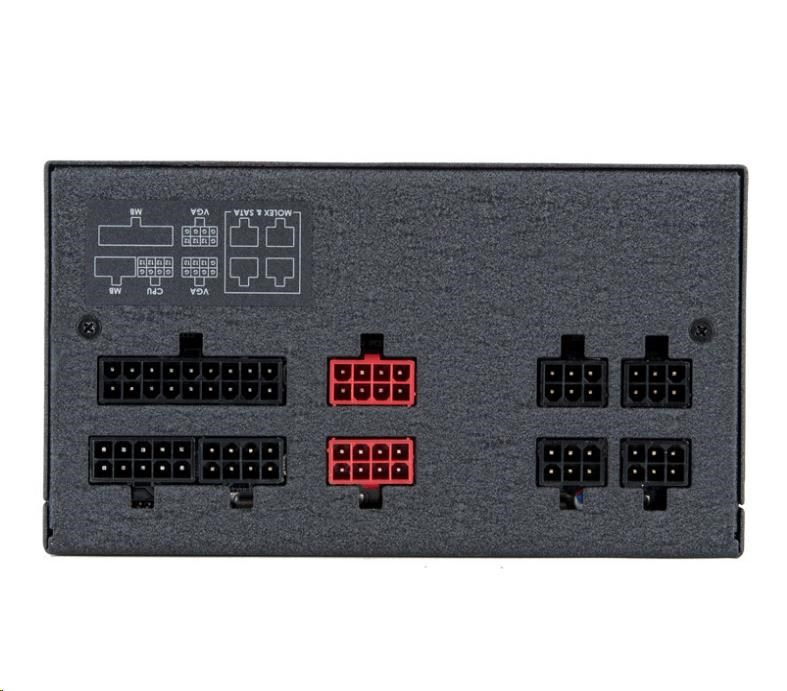

| CONNECTORS | |
| 20+4PIN ATX | 1 |
| 8 PIN EPS (4+4) | 1 |
| 8 PIN PCIe (6+2) | 4 |
| SATA | 9 |
| MOLEX | 3 |
| FLOPPY | 1 |
| CABLE LENGHT | |
| 20+4PIN ATX | 600 |
| 8 PIN EPS (4+4) | 700 |
| 8 PIN PCIe (6+2) | 2x 600/150 |
| SATA | 3x 800/150/150 |
| MOLEX | 700/150/150/150 |
| FLOPPY | Molex |
| FEATURES | |
| Specification | ATX 12V 2.3 |
| Form Factor | PS II |
| Efficiency | 80 PLUS Gold |
| Dimension (DxWxH) | 160 mm x 150 mm x 86 mm |
| PFC | Active PFC |
| Fan | 140mm silent fan |
| Security | OVP (Over voltage protection) OPP (Over power protection) OCP (Over current protection) SCP (Short-circuit protection) OTP (Over temperature protection) AFC (Automatic Fanspeed Control) SIP (Surge & Inrush Protection) No-load operation |
| Warranty | 36 Months |
.
