CHIEFTEC SATA Backplane CMR-125, 1x 2,5" HDDs/SDDs

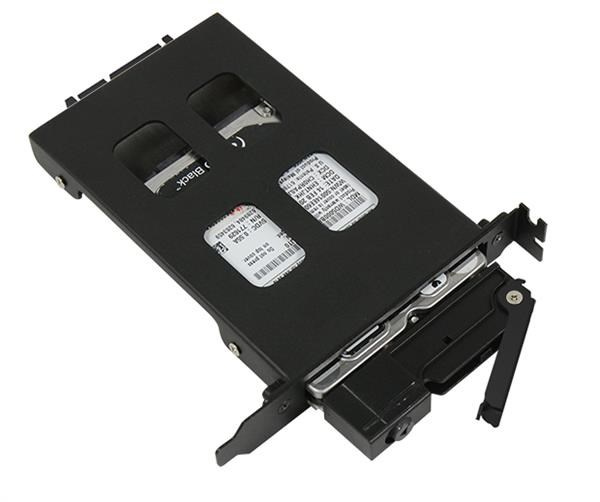

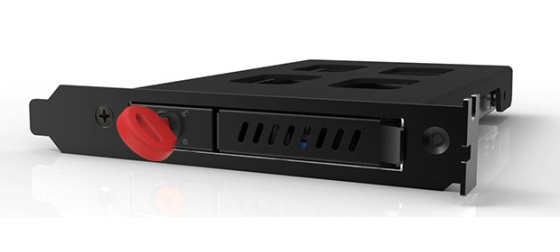

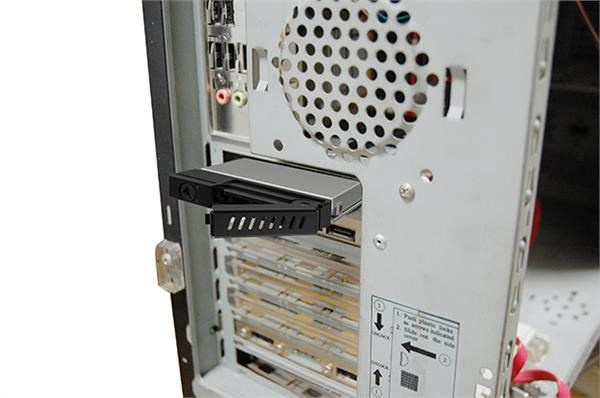

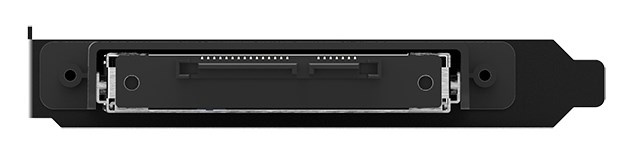

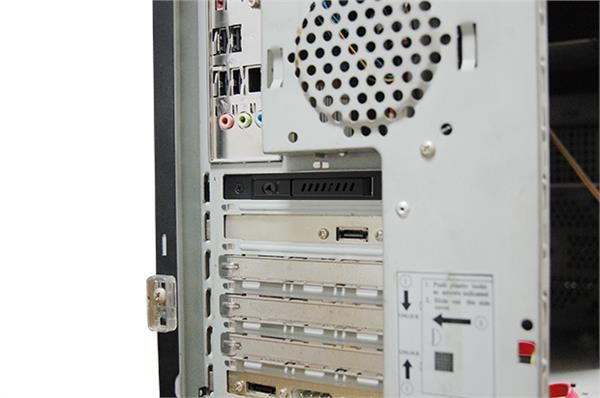

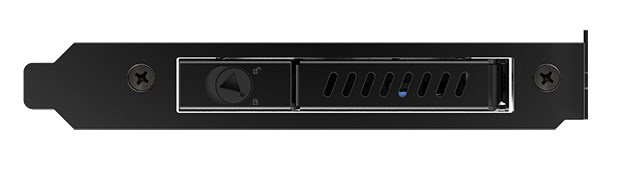

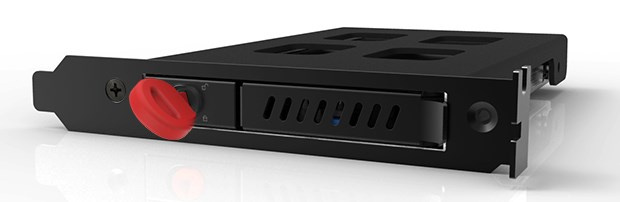

CMR-125 - The highly innovative backplane CMR-125 sets a new standard by providing an additional HDD/SSD mounting option using a PCI slot. Compatible with all 2,5" HDDs/SSDs (height: 7 ~ 9,5mm) it sources its power via the SATA connection and offers LEDs to indicate HDD access and power while trays are detachable for easy installation. The case being 100% metal and lockable with 2 keys ensures maximum security. All installed discs are hot-swappable which makes it suitable for diverse applications.

Features:

Professional Data Backup

Hot Swap

Plug & Play compatible

Lock mechanism for easy removal of storage media

Key Lock

Interface (HDD/SSD):	SATA I, SATA II, SATA III
Dimension (DxWxH):	138mm x 79mm x 11mm
Weight:	0,12 kg
Form Factor:	1x PCI Slot bay for 1x 2,5" HDDs/SDDs (max. HDD/SSD height up to 9,5mm)
Cooling:	N/A
Power Connector:	1x SATA
Data Interface (ext.):	1 x SATA
Material:	Full Metal structure
Special Features:	HDD LEDs
Scope of delivery:	SATA Backplane, 1x SATA cables, 2 keys, set of screws, User manual

.
Chieftec, Arena Electronic GmbH, Koppersstr. 18 40549 Düsseldorf ,Germany, info@chieftec.eu
